Kubota F3060

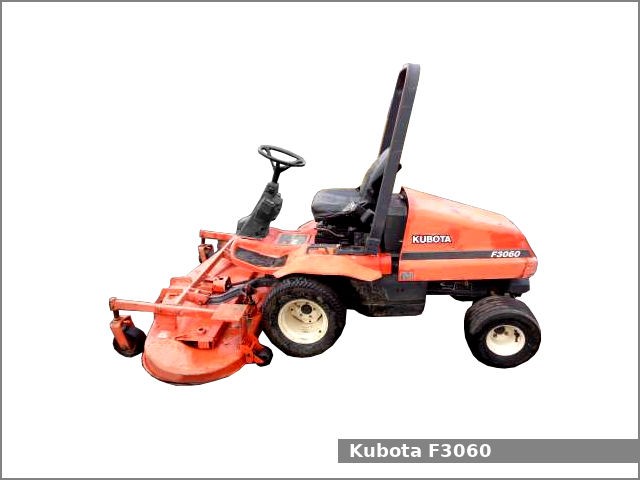

Kubota F3060The Kubota F3060 is a 4WD front-mount mower from the F60 series. This tractor was manufactured by Kubota from 1997 to 2005. The Kubota F3060 is equipped with a 1.3 L (81.5 cu·in) four-cylinder diesel engine and a hydrostatic transmission with infinite (2-range) forward and reverse gears.

The Kubota F3060 front-mount mower used the Kubota V1305 engine. It is a 1.3 L, 1,335 cm2, (81.5 cu·in) four-cylinder natural aspirated diesel engine with 76.0 mm (2.99 in) of the cylinder bore and 73.6 mm (2.9 in) of the piston stroke. This engine produced 30.5 PS (22.4 kW; 30.0 HP) at 2,700 rpm of output power.

The Kubota F3060 is equipped with power steering, wet disc brakes, two-post foldable ROPS, and 39.7 liters (10.5 US gal.; 8.7 Imp. gal) fuel tank.

Following attachments are available for the Kubota F3060 front-mount mower:

  • Front-mount Kubota 60 in (1,520 mm) mower deck with 3-blades
  • Front-mount Kubota 72 in (1,820 mm) mower deck with 3-blades

Kubota F3060 Specifications

General Specifications
Model Kubota F3060
Length 2,330 mm (91.7 in)
Width 1,140 mm (44.9 in)
Height 1,910 mm (75.2 in)
Wheel base 1,300 mm (51.2 in)
Ground clearance 170 mm (6.7 in)
Weight 607 kg (1,338 lbs)
Fuel tank capacity 39.7 liters (10.5 US gal.; 8.7 Imp. gal)
Battery 12V, 70Ah
Cabin type Two-post foldable ROPS
Engine
Engine model Kubota V1305
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 1.3 L, 1,335 cm2, (81.5 cu·in)
Bore and stroke 76.0 mm X 73.6 mm (2.99 in X 2.9 in)
Horsepower 30.5 PS (22.4 kW; 30.0 HP) at 2,700 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Transmission model –
Transmission type Hydrostatic
Gears Infinite (2-range) forward and reverse
Speed Forward: 17.0 kmh (10.6 mph) Reverse: 9.0 (5.6 mph)
Tires
Front tires Lawn/turf: 23×10.50-12
Rear tires Lawn/turf: 18×7.00-8
PTO (Power take-off shaft)
Front PTO type Independent with hydraulic clutch
Front PTO speed –
