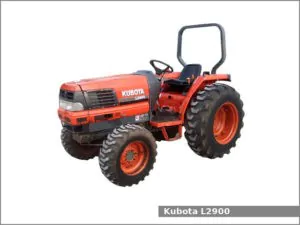

Kubota L2900

Kubota L2900The Kubota L2900 is a 2WD or 4WD compact utility tractor from the Grand L series. This tractor was manufactured by the Kubota from 1994 to 1999. The Kubota L2900 is equipped with 1.5 L three-cylinder diesel engine and one of two transmissions: synchronized shuttle transmission with dry disc clutch (8 forward and 8 reverse gears) or power shuttle transmission with dry disc clutch (8 forward and 8 reverse gears).

The Kubota L2900 compact utility tractor used the Kubota D1503 engine. It is a 1.5 L, 1,498 cm2, (91.4 cu·in) three-cylinder natural aspirated diesel engine with 83.0 mm (3.27 in) of the cylinder bore and 92.4 mm (3.64 in) of the piston stroke. This engine produced 32.5 PS (23.9 kW; 32.0 HP) of gross horsepower or 25.4 PS (18.7 KW; 25.0 HP) of PTO output power.

The Kubota L2900 is equipped with hydrostatic power steering, wet disc type brakes, open operator station with two-post ROPS and 35.0 liters (9.2 US gal.; 7.7 Imp. gal) fuel tank.

Following attachments are available for Kubota L2900 compact utility tractor:

  • Mid-mount Kubota RC72-29: 72 in (1,820 mm) mower deck with 3-blades a and hydraulic lift
  • Front-mount Kubota L2061A: 60 in (1,520 mm) blade
  • Front-mount Kubota L52HD snow blower
  • Front-mount Kubota L62HD snow blower
  • Front-mount Kubota LA480 loader
  • Front-mount Kubota LA481 loader
  • Front-mount Kubota BL4690 backhoe

Kubota L2900 Specifications

General Specifications
ModelKubota L2900
Length2,810 mm (110.6 in)
Width1,320 mm (52 in)
Height2,090 mm (82.3 in)
Wheel base 2WD: 1,670 mm (65.9 in)
4WD: 1,660 mm (65.4 in)
Weight 2WD: 1,160 kg (2,557 lbs)
4WD: 1,229 kg (2,710 lbs)
Fuel tank capacity35.0 liters (9.2 US gal.; 7.7 Imp. gal)
Battery12V, CCA: 490A
Cabin typeOpen operator station with two-post ROPS
Engine
Engine modelKubota D1503
Engine typeFour-stroke, liquid-cooled, inline
Cylinders3
Fuel typeDiesel
Displacement1.5 L, 1,498 cm2, (91.4 cu·in)
Bore and stroke83.0 mm X 92.4 mm (3.27 in X 3.64 in)
Horsepower32.5 PS (23.9 kW; 32.0 HP)
Torque96 N·m (9.8 kg·m, 70.8 ft·lb)
StarterElectric
Oil capacity:3.5 L (3.7 US. qt, 3.08 Imp. qt.)
Coolant capacity:7.0 L (7.4 US. qt, 6.16 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typeHydrostatic power
BrakesWet disc type
Transmission modelFST
Transmission typeSynchronized shuttle transmission with dry disc clutch
Gears8 forward and 8 reverse
Speed Forward: 24.6 kmh (15.3 mph) Reverse: 22.7 (14.1 mph)
Transmission oil capacity39.0 L (41.21 US. qt, 34.32 Imp. qt.)
Transmission modelGST (Glide Shift)
Transmission typePower shuttle transmission with dry disc clutch
Gears8 forward and 8 reverse
Speed Forward: 24.6 kmh (15.3 mph) Reverse: 22.7 (14.1 mph)
Transmission oil capacity39.0 L (41.21 US. qt, 34.32 Imp. qt.)
Tires
Front tiresAg: 5.00-15 (2WD), 7.2-16 (4WD)
Rear tiresAg: 11.2-24
Three-Point Hitch
CaterogyI
Control typePosition control
Lift capacity1,300 kg (2,867 lbs)
PTO (Power take-off shaft)
Middle PTO typeIndependent
Middle PTO spped2,000 rpm
Rear PTO typeIndependent
Rear PTO spped540 rpm
Hydraulic system
Hydraulic typeOpen center
Hydraulic capacity39.0 L (41.21 US. qt, 34.32 Imp. qt.)
Pressure2490 psi (171.7 bar)
Pump flow7.0 gpm (26.5 lpm)
