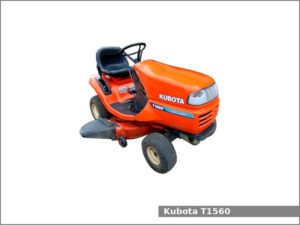

Kubota T1560

 Kubota T1560 review and specifications: dimensions and weight, engine and transmission type, horsepower, oil type and capacity, tiresThe Kubota T1560 is a 2WD lawn tractor from the T series. This tractor was manufactured by Kubota from 1997 to 2001. The Kubota T1560 is equipped with a 0.4 L (25.8 cu·in) single-cylinder gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.

The Kubota T1560 lawn tractor used the Kawasaki FC420V engine. It is a 0.4 L, 423 cm2, (25.8 cu·in) single-cylinder natural aspirated gasoline engine with 89.0 mm (3.5 in) of the cylinder bore and 68.0 mm (2.68 in) of the piston stroke. This engine produced 14.1 PS (10.4 kW; 14.0 HP) at 3,600 rpm of maximum output power.

Following attachments are available for the Kubota T1560 lawn tractor:

  • Mid-mount Kubota RCK40LT: 40 in (1,010 mm) mower deck
  • Mid-mount Kubota RCK44LT: 44 in (1,110 mm) mower deck
  • Front-mount Kubota T2083: 46 in (1,160 mm) blade
  • Front-mount Kubota T2738: 38 in (960 mm) snow blower

Kubota T1560 Specifications

General Specifications
ModelKubota T1560
Length1,710 mm (67.3 in)
Width1,320 mm (52 in)
Wheel base
Weight240 kg (529 lbs)
Fuel tank capacity
Cabin typeOpen operator station
Engine modelKawasaki FC420V
Engine typeFour-stroke, air-cooled, inline
Fuel typeGasoline
Displacement0.4 L, 423 cm2, (25.8 cu·in)
Bore and stroke89.0 mm X 68.0 mm (3.5 in X 2.68 in)
Horsepower14.1 PS (10.4 kW; 14.0 HP) at 3,600 rpm
Oil typeAPI: SF, SE, SD, SAE: 10W-30
Spark plugNGK BPR5ES
Transmission and chassis
Chassis4×2 2WD
Steering type
Transmission model
Transmission typeHydrostatic
GearsInfinite forward and reverse
Speed Forward: 9.0 kmh (5.6 mph) Reverse: 4.0 (2.5 mph)
Front tiresLawn/turf: 15×6.00-6
Rear tiresLawn/turf: 18×8.50-8 or 20×10.00-8
