MTD 960 Fifteen Hundred

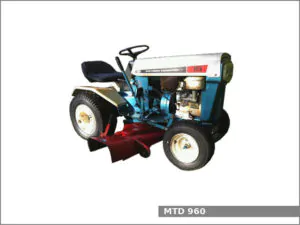

MTD 960 Fifteen HundredThe MTD 960 Fifteen Hundred is a 2WD garden tractor, manufactured by MTD during 1972, (the MTD 960 model was manufactured from 1970 to 1976 and had three generations). The MTD 960 Fifteen Hundred is equipped with a 0.5 L (32.4 cu·in) single-cylinder gasoline engine and a belt-driven gear type transmission with 4 forward and 1 reverse gears.

The MTD 960 Fifteen Hundred garden tractor used the Briggs & Stratton 325000 engine. It is a 0.5 L, 531 cm2, (32.4 cu·in) single-cylinder natural aspirated gasoline engine with 90.0 mm (3.54 in) of the cylinder bore and 83.0 mm (3.27 in) of the piston stroke. This engine produced 15.2 PS (11.2 kW; 15.0 HP) of output power.

Following attachments are available for the MTD 960 Fifteen Hundred garden tractor:

  • Mid-mount MTD 1,060 mm (42 in) mower deck with 3-blades and manual lift
  • Front-mount MTD 1,370 mm (54 in) blade

MTD 960 Fifteen Hundred Specifications

General Specifications
ModelMTD 960 Fifteen Hundred
Length
Width
Height
Wheel base
Weight
Fuel tank capacity
Battery12V
Cabin typeOpen operator station
Engine
Engine modelBriggs & Stratton 325000
Engine typeFour-stroke, air-cooled
Cylinders1
Fuel typeGasoline
Displacement0.5 L, 531 cm2, (32.4 cu·in)
Bore and stroke90.0 mm X 83.0 mm (3.54 in X 3.27 in)
Horsepower15.2 PS (11.2 kW; 15.0 HP)
StarterElectric
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
Brakes
Transmission modelPeerless
Transmission typeBelt-driven gear type
Gears4 forward and 1 reverse
Tires
Front tires Ag: 16×6.50-8
Rear tires Ag: 23×8.50-12
PTO (Power take-off shaft)
Middle PTO typeIndependent with manual clutch
Middle PTO speed
