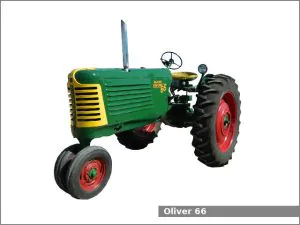

The Oliver 66 is a 2WD row-crop tractor from the Fleetline series. This tractor was manufactured by Oliver in Charles City, Iowa, USA from 1949 to 1954.
The Oliver 66 is equipped with one of two engines: a 2.1 L (129.0 cu·in) four-cylinder gasoline engine or a 2.1 L (129.0 cu·in) four-cylinder diesel engine and a unsynchronized gear transmission with 6 forward and 2 reverse gears and dry disc clutch.
The tractor could be equipped with the following engines:
- Oliver-Waukesha. It is a 2.1 L, 2,114 cm2, (129.0 cu·in) four-cylinder natural aspirated gasoline engine with 84.0 mm (3.31 in) of the cylinder bore and 95.0 mm (3.74 in) of the piston stroke. The compression ratio rating is 6.75:1.
- Oliver-Waukesha. It is a 2.1 L, 2,114 cm2, (129.0 cu·in) four-cylinder natural aspirated diesel engine. The cylinder bore is 84.0 mm (3.31 in) and the piston stroke is 95.0 mm (3.74 in). The compression ratio rating is 15.5:1.
The Oliver 66 is equipped with manual steering, contracting band brakes, open operator station and 37.9 liters (10 US gal.; 8.3 Imp. gal) fuel tank.
The Oliver 66 variants tractor:
- 66R: row-crop
- 66S: standard
Oliver 66 Specifications
| General Specifications | |
| Model | Oliver 66 |
| Length | 3,420 mm (134.6 in) |
| Width | – |
| Height | 2,160 mm (85 in) |
| Wheel base | 2,200 mm (86.6 in) |
| Ground clearance | 610 mm (24 in) |
| Weight | Gasoline: 1,448 kg (3,192 lbs) Diesel: 1,720 kg (3,792 lbs) |
| Fuel tank capacity | 37.9 liters (10 US gal.; 8.3 Imp. gal) |
| Battery | – |
| Cabin type | Open operator station |
| Engine | |
| Engine model | Oliver-Waukesha |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 4 |
| Fuel type | Gasoline |
| Displacement | 2.1 L, 2,114 cm2, (129.0 cu·in) |
| Bore and stroke | 84.0 mm X 95.0 mm (3.31 in X 3.74 in) |
| Compression ratio | 6.75:1 |
| Horsepower | – |
| Starter | Electric |
| Coolant capacity: | 13.2 L (13.9 US. qt, 11.6 Imp. qt.) |
| Engine | |
| Engine model | Oliver-Waukesha |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 4 |
| Fuel type | Diesel |
| Displacement | 2.1 L, 2,114 cm2, (129.0 cu·in) |
| Bore and stroke | 84.0 mm X 95.0 mm (3.31 in X 3.74 in) |
| Compression ratio | 15.5:1 |
| Horsepower | – |
| Starter | Electric |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Manual |
| Brakes | Contracting band |
| Transmission model | – |
| Transmission type | Unsynchronized gear with dry disc clutch |
| Gears | 6 forward and 2 reverse |
| Tires | |
| Front tires | Ag: 5.00-15 |
| Rear tires | Ag: 8-38, 9-38, 10-38 |
| Three-Point Hitch | |
| Category | Oliver Hydra-Lift |
| Control type | – |
| Lift capacity (at ends) | – |
| PTO (Power take-off shaft) | |
| Rear PTO type | Independent |
| Rear PTO speed | 540 rpm |
