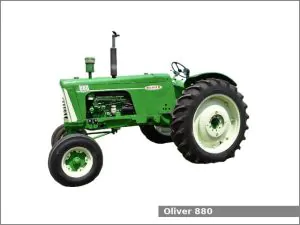

The Oliver 880 is a 2WD row-crop tractor from the series. This tractor was manufactured by Oliver in Charles City, Iowa, USA from 1958 to 1963.
The Oliver 880 is equipped with one of two engines: a 4.3 L (265.0 cu·in) six-cylinder gasoline engine or a 4.3 L (265.0 cu·in) six-cylinder diesel engine and one of two transmissions: a constant mesh transmission with 6 forward and 2 reverse gears and dry disc clutch or a two-speed power shift transmission with 12 forward and 4 reverse gears.
The tractor could be equipped with the following engines:
- Waukesha-Oliver. It is a 4.3 L, 4,342 cm2, (265.0 cu·in) six-cylinder natural aspirated gasoline engine with 95.0 mm (3.74 in) of the cylinder bore and 102.0 mm (4.02 in) of the piston stroke. The compression ratio rating is 7.3:1. This engine produced 55.8 PS (41.0 kW; 55.0 HP) at 1,750 rpm of PTO output power.
- Waukesha-Oliver. It is a 4.3 L, 4,342 cm2, (265.0 cu·in) six-cylinder natural aspirated diesel engine. The cylinder bore is 95.0 mm (3.74 in) and the piston stroke is 102.0 mm (4.02 in). The compression ratio rating is 16.0:1. This engine produced 55.8 PS (41.0 kW; 55.0 HP) at 1,750 rpm of PTO output power.
The Oliver 880 is equipped with manual steering, differential mechanical disc brakes, open operator station and 76.8 liters (20.3 US gal.; 16.9 Imp. gal) fuel tank for gasoline fuel or 68.9 liters (18.2 US gal, 15.2 Imp. gal) for diesel.
Oliver 880 Specifications
| General Specifications | |
| Model | Oliver 880 |
| Length | 3,650 mm (143.7 in) |
| Width | 2,330 mm (91.7 in) |
| Height | – |
| Wheel base | 2,380 mm (93.7 in) |
| Weight (operating) | 2,560 kg (5,644 lbs) |
| Fuel tank capacity | 76.8 liters (20.3 US gal.; 16.9 Imp. gal) |
| Battery | |
| Cabin type | Open operator station |
| Engine | |
| Engine model | Waukesha-Oliver |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 6 |
| Fuel type | Gasoline |
| Displacement | 4.3 L, 4,342 cm2, (265.0 cu·in) |
| Bore and stroke | 95.0 mm X 102.0 mm (3.74 in X 4.02 in) |
| Compression ratio | 7.3:1 |
| Horsepower | 55.8 PS (41.0 kW; 55 HP) at 1,750 rpm |
| Starter | Electric |
| Oil capacity: | 7.6 L (8 US. qt, 6.7 Imp. qt.) |
| Coolant capacity: | 17.0 L (18 US. qt, 15 Imp. qt.) |
| Engine | |
| Engine model | Waukesha-Oliver |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 6 |
| Fuel type | Diesel |
| Displacement | 4.3 L, 4,342 cm2, (265.0 cu·in) |
| Bore and stroke | 95.0 mm X 102.0 mm (3.74 in X 4.02 in) |
| Compression ratio | 16.0:1 |
| Horsepower | 55.8 PS (41.0 kW; 55 HP) at 1,750 rpm |
| Starter | Electric |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Manual |
| Brakes | Differential mechanical disc |
| Transmission model | – |
| Transmission type | Constant mesh with dry disc clutch |
| Gears | 6 forward and 2 reverse |
| Speed | Forward: 17.2 kmh (10.7 mph) Reverse: 6.4 kmh (4 mph) |
| Transmission model | Power-Booster |
| Transmission type | Two-speed power shift |
| Gears | 12 forward and 4 reverse |
| Tires | |
| Front tires | Ag: 6.50-16 |
| Rear tires | Ag: 14.00-34 |
| Three-Point Hitch | |
| Category | II/I |
| Control type | – |
| Lift capacity (at ends) | – |
| PTO (Power take-off shaft) | |
| Rear PTO type | Independent |
| Rear PTO speed | 540 rpm |
