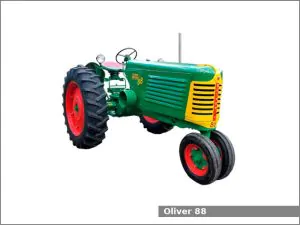

Oliver 88

Oliver 88The Oliver 88 is a 2WD row-crop tractor manufactured by Oliver in Charles City, Iowa, USA from 1947 to 1954.

The Oliver 88 is equipped with one of two engines: a 3.8 L (231.0 cu·in) six-cylinder gasoline engine or a 3.8 L (231.0 cu·in) six-cylinder diesel engine and a gear type transmission with 6 forward and 2 reverse gears and with dry disc clutch.

The Oliver 88 used with manual steering, an open operator station and 83.3 liters (22 US gal.; 18.3 Imp. gal) fuel tank.

The tractor could be equipped with the following engines:

  • Waukesha-Oliver. It is a 3.8 L, 3,785 cm2, (231.0 cu·in) six-cylinder natural aspirated gasoline engine with 89.0 mm (3.5 in) of the cylinder bore and 102.0 mm (4.02 in) of the piston stroke. The compression ratio rating is 6.75:1.
  • Waukesha-Oliver. It is a 3.8 L, 3,785 cm2, (231.0 cu·in) six-cylinder natural aspirated diesel engine. The cylinder bore is 89.0 mm (3.5 in) and the piston stroke is 102.0 mm (4.02 in).

Oliver 88 Specifications

General Specifications
Model Oliver 88
Length 3,600 mm (141.7 in)
Width 1,720 mm (67.7 in)
Height 1,750 mm (68.9 in)
Wheel base 2,380 mm (93.7 in)
Weight (operating) 2,270 kg (5,004 lbs)
Fuel tank capacity 83.3 liters (22 US gal.; 18.3 Imp. gal)
Battery
Cabin type Open operator station
Engine
Engine model Waukesha-Oliver
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Gasoline
Displacement 3.8 L, 3,785 cm2, (231.0 cu·in)
Bore and stroke 89.0 mm X 102.0 mm (3.5 in X 4.02 in)
Compression ratio 6.75:1
Horsepower
Starter Electric
Coolant capacity: 17.0 L (18 US. qt, 15 Imp. qt.)
Engine
Engine model Waukesha-Oliver
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 3.8 L, 3,785 cm2, (231.0 cu·in)
Bore and stroke 89.0 mm X 102.0 mm (3.5 in X 4.02 in)
Horsepower
Starter Electric
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes
Transmission model
Transmission type Gear type with dry disc clutch
Gears 6 forward and 2 reverse
Speed Forward: 18.9 kmh (11.7 mph) Reverse: kmh (0 mph)
Tires
Front tires Ag: 6.00-16
Rear tires Ag: 11-38, 12-38
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540 rpm
