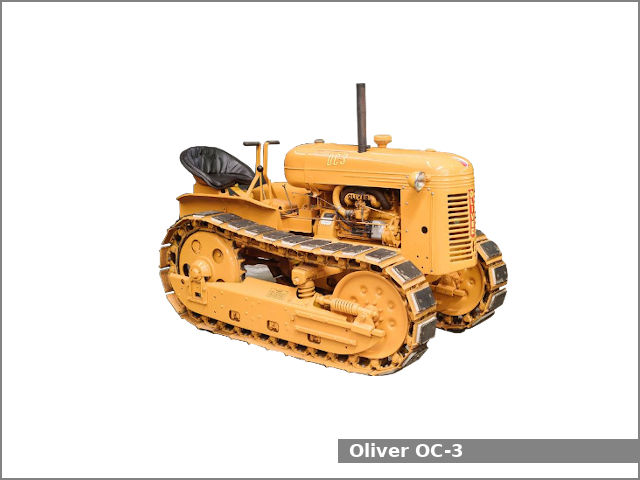

Oliver OC-3

Oliver OC-3The Oliver OC-3 is an agricultural crawler manufactured by Oliver in Cleveland, Ohio, USA from 1951 to 1957. The Oliver OC3 is equipped with a 2.2 L (133.0 cu·in) four-cylinder gasoline engine and a gear type transmission with 3 forward and 1 reverse gears.

The Oliver OC3 agricultural crawler used the Hercules engine. It is a 2.2 L, 2,179 cm2, (133.0 cu·in) four-cylinder natural aspirated gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 102.0 mm (4.02 in) of the piston stroke. The compression ratio rating is 6.67:1. This engine produced 29.4 PS (21.6 kW; 29.0 HP) at 1,700 rpm of output power.

Oliver OC-3 Specifications

General Specifications
Model Oliver OC-3
Length 2,540 mm (100 in)
Width 1,330 mm (52.4 in)
Height (hood) 1,280 mm (50.4 in)
Wheel base
Weight
Fuel tank capacity 45.4 liters (12 US gal.; 10 Imp. gal)
Battery
Cabin type Open operator station
Engine
Engine model Hercules
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline
Displacement 2.2 L, 2,179 cm2, (133.0 cu·in)
Bore and stroke 83.0 mm X 102.0 mm (3.27 in X 4.02 in)
Compression ratio 6.67:1
Horsepower 29.4 PS (21.6 kW; 29.0 HP) at 1,700 rpm
Starter Electric
Coolant capacity: 10.4 L (11 US. qt, 9.2 Imp. qt.)
Transmission and chassis
Chassis Crawler
Steering type
Brakes
Transmission model
Transmission type Gear type
Gears 3 forward and 1 reverse
Speed Forward: 8.4 kmh (5.2 mph) Reverse: 3.7 kmh (2.3 mph)
Tracks
Track size 10-inch tracks
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
