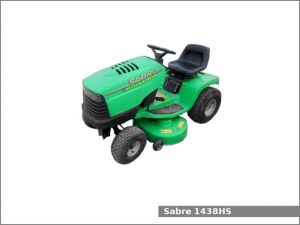

Sabre 1438HS

Sabre 1438HSThe Sabre 1438HS is a 2WD lawn tractor manufactured by Sabre (a part of John Deere) in Greeneville, Tennessee, USA from 1999 to 2001. The Sabre 1438HS is equipped with a 0.5 L (28.4 cu·in) single-cylinder gasoline engine and a belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Sabre 1438HS lawn tractor used the Briggs & Stratton Intek engine. It is a 0.5 L, 465 cm2, (28.4 cu·in) single-cylinder natural aspirated gasoline engine with 87.7 mm (3.45 in) of the cylinder bore and mm (0 in) of the piston stroke. This engine produced 14.7 PS (10.8 kW; 14.5 HP)of output power.

The Sabre 1438HS is equipped with manual sector-and-pinion steering, disc brakes, an open operator station, and 4.7 liters (1.2 US gal.; 1 Imp. gal) fuel tank.

Following attachments are available for the Sabre 1438HS lawn tractor:

  • Mid-mount Sabre 38 in (960 mm) mower deck with 2-blade and manual lift
  • Front-mount Sabre 46 in (1,160 mm) blade
  • Front-mount Sabre 42 in (1,060 mm) snow blower with manual lift

Sabre 1438HS Specifications

General Specifications
Model Sabre 1438HS
Length 1,520 mm (59.8 in)
Width 910 mm (35.8 in)
Height 980 mm (38.6 in)
Wheel base 1,130 mm (44.5 in)
Weight 175 kg (386 lbs)
Fuel tank capacity 4.7 liters (1.2 US gal.; 1 Imp. gal)
Battery 12V, CCA 230A, Group BCI U1
Cabin type Open operator station
Engine
Engine model Briggs & Stratton Intek
Engine type Four-stroke, air-cooled, inline
Cylinders 1
Fuel type Gasoline
Displacement 0.5 L, 465 cm2, (28.4 cu·in)
Bore and stroke 87.7 mm X mm (3.45 in X 0 in)
Horsepower 14.7 PS (10.8 kW; 14.5 HP) at rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual sector-and-pinion
Brakes Disc
Transmission model Tuff Torq K51
Transmission type Belt-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 9.3 kmh (5.8 mph) Reverse: 4.7 kmh (2.9 mph)
Tires
Front tires Lawn/turf: 15×6.5-6
Rear tires Lawn/turf: 20×8-8
