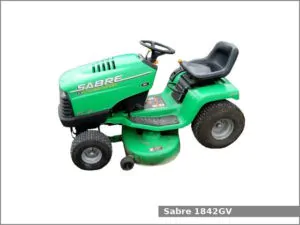

Sabre 1842GV

Sabre 1842GVThe Sabre 1842GV is a 2WD lawn tractor manufactured by the Sabre in Greeneville, Tennessee, USA from 1997 to 2000. The Sabre 1842GV is equipped with 0.6 L two-cylinders gasoline engine and belt-driven gear transmission with 6 forward and 1 reverse gear.

The Sabre 1842GV lawn tractor used 0.6 L, 568 cm2, (34.66 cu·in) Briggs & Stratton 350777 gasoline engine. It is a two-cylinder V-Twin OHV-valve air-cooled engine with 72.0 mm (2.83 in) of the cylinder bore and 70.0 mm (2.76 in) of the piston stroke. This engine produced 18.2 PS (13.4 kW; 18 HP) at 3,600 rpm of maximum output power.

The Sabre 1842GV is equipped with manual steering, open operator station and 13.0 liters (3.4 US gal.; 2.9 Imp. gal) fuel tank.

Following attachments are available for Sabre 1842GV lawn tractor:

  • Sabre 42 in (1,060 mm) mid-mount mower deck with manual lift
  • Sabre 42 in (1,060 mm) mid-mount snow blower with manual lift
  • Sabre 46 in (1,160 mm) mid-mount blade with manual lift

Sabre 1842GV Specifications

General Specifications
Model Sabre 1842GV
Length 1,810 mm (71.3 in)
Width 950 mm (37.4 in)
Height 1,120 mm (44.1 in)
Wheel base 1,230 mm (48.4 in)
Fuel tank capacity 13.0 liters (3.4 US gal.; 2.9 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine model Briggs & Stratton 350777
Engine type Four-stroke, air-cooled, V
Cylinders 2
Fuel type Gasoline
Displacement 0.6 L, 568 cm2, (34.7 cu·in)
Bore and stroke 72.0 mm X 70.0 mm (2.83 in X 2.76 in)
Horsepower 18.2 PS (13.4 kW; 18 HP) at 3,600 rpm
Starter Electric
Oil capacity: 1.7 L (1.8 US. qt, 1.5 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Transmission model
Transmission type Belt-driven gear
Gears 6 forward and 1 reverse
Speed Forward: 9.8 kmh (6.1 mph) Reverse: 4.7 (2.9 mph)
Transmission oil capacity 3.2 L (3.38 US. qt, 2.82 Imp. qt.)
Front tires
Rear tires
PTO (Power take-off shaft)
Front PTO type Independent with electric clutch
Front PTO spped
