Simplicity 6216

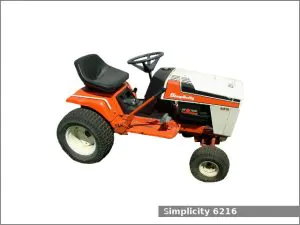

Simplicity 6216The Simplicity 6216 is a 2WD garden tractor from the 6200 series. This tractor was manufactured by Simplicity (a part of Allis Chalmers) in Port Washington, Wisconsin, USA from 1981 to 1987. The Simplicity 6216 is equipped with a 0.7 L (40.2 cu·in) two-cylinder gasoline engine and a belt-driven gear transmission with mechanical variator and 3 forward and 1 reverse gears.

The Simplicity 6216 garden tractor used the Briggs & Stratton 402707 engine. It is a 0.7 L, 658 cm2, (40.2 cu·in) two-cylinder natural aspirated gasoline engine with 87.0 mm (3.43 in) of the cylinder bore and 55.0 mm (2.17 in) of the piston stroke. This engine produced 16.2 PS (11.9 kW; 16.0 HP) at 3,600 rpm of output power.

The Simplicity 6216 is equipped with manual steering, an open operator station, and 8.3 liters (2.2 US gal.; 1.8 Imp. gal) fuel tank.

Following attachments are available for the Simplicity 6216 garden tractor:

  • Mid-mount Simplicity 42 in (1,060 mm) mower deck with 3-blade
  • Mid-mount Simplicity 48 in (1,210 mm) mower deck with 3-blade
  • Front-mount Simplicity 42 in (1,060 mm) blade
  • Front-mount Simplicity 42 in (1,060 mm) single-stage snow blower

Simplicity 6216 Specifications

General Specifications
ModelSimplicity 6216
Length1,700 mm (66.9 in)
Width930 mm (36.6 in)
Height (steering wheel)1,050 mm (41.3 in)
Wheel base1,220 mm (48 in)
Weight (shipping)330 kg (728 lbs)
Fuel tank capacity8.3 liters (2.2 US gal.; 1.8 Imp. gal)
Battery12V, 39Ah
Cabin typeOpen operator station
Engine modelBriggs & Stratton 402707
Engine typeFour-stroke, air-cooled, inline
Fuel typeGasoline
Displacement0.7 L, 658 cm2, (40.2 cu·in)
Bore and stroke87.0 mm X 55.0 mm (3.43 in X 2.17 in)
Horsepower16.2 PS (11.9 kW; 16.0 HP) at 3,600 rpm
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
Transmission modelTractomatic
Transmission typeBelt-driven gear with mechanical variator
Gears3 forward and 1 reverse
Speed Forward: 10.9 kmh (6.8 mph)
Front tires Lawn/turf: 15×6.00-6
Rear tires Lawn/turf: 23×10.50-12
PTO (Power take-off shaft)
Front PTO typeIndependent with mechanical clutch
Front PTO speed
