Toro 8-32

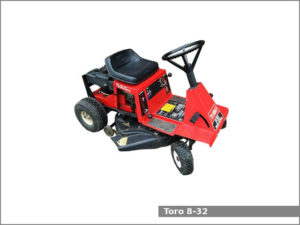

Toro 8-32The Toro 8-32 is a 2WD riding mower from the series. This tractor was manufactured by Toro in from 1983 to 1990. The Toro 8-32 is equipped with a 0.3 L (19.4 cu·in) single-cylinder gasoline engine and a gear type transmission with 5 forward and 1 reverse gears.

The Toro 8-32 riding mower used the Briggs & Stratton 191707 engine. It is a 0.3 L, 318 cm2, (19.4 cu·in) single-cylinder natural aspirated gasoline engine with 76.0 mm (2.99 in) of the cylinder bore and 70.0 mm (2.76 in) of the piston stroke. This engine produced 8.2 PS (6.0 kW; 8.0 HP) of output power.

The Toro 8-32 is equipped with manual steering, brakes, an open operator station, and a mid-mount 810 mm (32 in) mower deck with a single blade.

Toro 8-32 Specifications

General Specifications
ModelToro 8-32
Length
Width
Height
Wheel base
Weight
Fuel tank capacity
Battery12V
Cabin typeOpen operator station
Engine
Engine modelBriggs & Stratton 191707
Engine typeFour-stroke, air-cooled
Cylinders1
Fuel typeGasoline
Displacement0.3 L, 318 cm2, (19.4 cu·in)
Bore and stroke76.0 mm X 70.0 mm (2.99 in X 2.76 in)
Horsepower8.2 PS (6.0 kW; 8.0 HP)
StarterElectric
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
Brakes
Transmission modelPeerless 770
Transmission typeGear type
Gears5 forward and 1 reverse
Tires
Front tires Lawn/turf: –
Rear tires Lawn/turf: –
