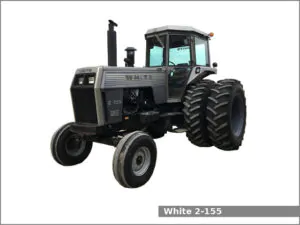

White 2-155

White 2-155The White 2-155 is a 2WD or 4WD row-crop tractor from the Field Boss series. This tractor was manufactured by White from 1976 to 1987. The White 2-155 is equipped with a 7.8 L (478.0 cu·in) six-cylinder diesel engine and a partial powershift transmission with 18 forward and 6 reverse gears.

The White 2-155 row-crop tractor used the White-Hercules engine. It is a 7.8 L, 7,833 cm2, (478.0 cu·in) six-cylinder turbocharged diesel engine with 116.0 mm (4.57 in) of the cylinder bore and 124.0 mm (4.88 in) of the piston stroke. The compression ratio rating is 17.0:1. This engine produced 157.2 PS (115.6 kW; 155.0 HP) at 2,200 rpm of PTO output power.

The White 2-155 is equipped with power steering, independent hydraulic wet disc brakes, cab standard with air-conditioning, and 280.1 liters (74 US gal.; 61.6 Imp. gal) fuel tank. This tractor could be equipped with the White 1840-QA loader.

White 2-155 Specifications

General Specifications
Model White 2-155
Length 4,260 mm (167.7 in)
Width 2,430 mm (95.7 in)
Long axle: 2,920 mm (115 in)
Height (cab) 3,040 mm (119.7 in)
Wheel base 2WD: 2,870 mm (113 in)
4WD: 2,280 mm (89.8 in)
Ground clearance 2WD: 550 mm (21.7 in)
4WD: 400 mm (15.7 in)
Weight (shipping) 2WD: 6,486 kg (14,299 lbs)
4WD: 6,894 kg (15,199 lbs)
Fuel tank capacity 280.1 liters (74 US gal.; 61.6 Imp. gal)
Battery Two 12V
Cabin type Cab standard with air-conditioning
Engine
Engine model White-Hercules
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 7.8 L, 7,833 cm2, (478.0 cu·in)
Bore and stroke 116.0 mm X 124.0 mm (4.57 in X 4.88 in)
Compression ratio 17.0:1
Horsepower 157.2 PS (115.6 kW; 155.0 HP) at 2,200 rpm
Starter Electric
Coolant capacity: 27.9 L (29.5 US. qt, 24.5 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Independent hydraulic wet disc
Final drive Inboard planetary
Transmission model Hydraul-Shift
Transmission type Partial powershift
Gears 18 forward and 6 reverse
Speed Forward: 28.6 kmh (17.8 mph) Reverse: 10.0 kmh (6.2 mph)
Tires
Front tires Ag: 11.00-16 (2WD), 14.9-28 (4WD)
Rear tires Ag: 18.4-38
Three-Point Hitch
Category III/II
Control type
Lift capacity (at ends) 2,900 kg (4 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 1,000 rpm
Hydraulic system
Hydraulic type Closed center
Hydraulic capacity 87.1 L (23 US. gal, 19.2 Imp. gal.)
Pressure 2250 psi (155.1 bar)
Valves 2 or 3
Total flow 21.0 gpm (79.5 lpm)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
