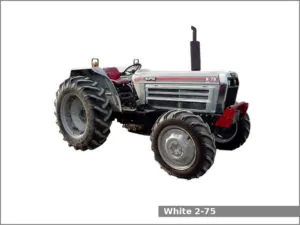

The White 2-75 is a 2WD or 4WD utility tractor from the Field Boss series. This tractor was manufactured by the Iseki for White from 1982 to 1987. The White 2-75 is equipped with 5.4 L six-cylinder diesel engine and synchromesh transmission with 16 forward and 4 reverse gears.
The White 2-75 utility tractor used the Isuzu engine. It is a 5.4 L, 5,392 cm2, (329 cu·in) six-cylinder diesel engine with 102.0 mm (4.02 in) of cylinder bore and 110.0 mm (4.33 in) of piston stroke. This engine produced 76.4 PS (56.2 kW; 75.4 HP) at 2,200 rpm of maximum output power.
The White 2-75 is equipped with hydrostatic power steering, foot-activated differential lock, differential wet disc brakes, two-post ROPS (rollover protection structure) and 80.0 liters (21.1 US gal.; 17.6 Imp. gal) fuel tank.
White 2-75 Specifications
| General Specifications | |
| Model | White 2-75 |
| Length | 3,890 mm (153.1 in) |
| Width | 1,870 mm (73.6 in) |
| Height | 2,550 mm (100.4 in) |
| Wheel base | 2,300 mm (90.6 in) |
| Weight | 4,365 kg (9,624 lbs) |
| Fuel tank capacity | 80.0 liters (21.1 US gal.; 17.6 Imp. gal) |
| Battery | 12V |
| Cabin type | Two-post ROPS |
| Engine | |
| Engine model | Isuzu |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 6 |
| Fuel type | Diesel |
| Displacement | 5.4 L, 5,392 cm2, (329 cu·in) |
| Bore and stroke | 102.0 mm X 110.0 mm (4.02 in X 4.33 in) |
| Horsepower | 76.4 PS (56.2 kW; 75.4 HP) at 2,200 rpm |
| Starter | Electric |
| Oil capacity: | 16.0 L (16.91 US. qt, 14.08 Imp. qt.) |
| Coolant capacity: | 18.3 L (19.34 US. qt, 16.1 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD or 4×4 MFWD 4WD (opti |
| Steering type | Hydrostatic power |
| Brakes | Differential wet disc |
| Transmission model | – |
| Transmission type | Synchromesh |
| Gears | 16 forward and 4 reverse |
| Speed | Forward: 24.0 kmh (14.9 mph) Reverse: 10.5 (6.5 mph) |
| Transmission oil capacity | 33.4 L (35.29 US. qt, 29.39 Imp. qt.) |
| Tires | |
| Front tires | Ag: 7.50-18 (2WD); 11.20-24 (4WD) |
| Rear tires | Ag: 16.9-34 (2WD); 16.9-34 (4WD) |
| Three-Point Hitch | |
| Caterogy | II/I |
| Control type | – |
| Lift capacity | 2,400 kg (5,300 lbs) |
| PTO (Power take-off shaft) | |
| Rear PTO type | Independent |
| Rear PTO spped | 540/1000 rpm |
| Hydraulic system | |
| Hydraulic type | Open center |
| Hydraulic capacity | 33.3 L (35.19 US. qt, 29.3 Imp. qt.) |
| Pressure | 2560 psi (176.5 bar) |
| Valves | 1 to 3 |
| Total flow | 11.9 gpm (45 lpm) |
