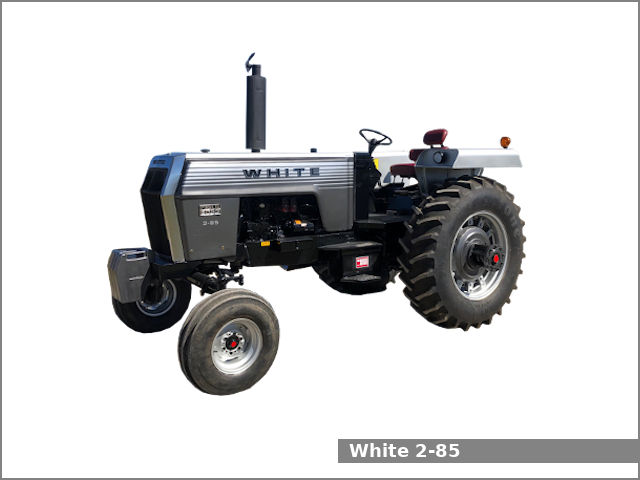

The White 2-85 is a 2WD or 4WD row-crop tractor from the Field Boss series. This tractor was manufactured by White from 1976 to 1982. The White 2-85 is equipped with a 5.8 L (354.0 cu·in) six-cylinder diesel engine and one of two transmissions: an unsynchronized transmission with 6 forward and 2 reverse gears or a partial powershift transmission with 18 forward and 6 reverse gears.
The White 2-85 row-crop tractor used the Perkins engine. It is a 5.8 L, 5,801 cm2, (354.0 cu·in) six-cylinder natural aspirated diesel engine with 98.0 mm (3.86 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 16.0:1. This engine produced 86.2 PS (63.4 kW; 85.0 HP) at 2,200 rpm of PTO output power.
The White 2-85 is equipped with hydrostatic power steering, independent hydraulic dry disc brakes, two-post ROPS canopy or cab (optional), and 122.3 liters (32.3 US gal.; 26.9 Imp. gal) fuel tank.
Following attachments are available for the White 2-85 row-crop tractor:
- White 1730-QA loader
- White 1840-QA loader
White 2-85 Specifications
| General Specifications | |
| Model | White 2-85 |
| Length | – |
| Width | – |
| Height | – |
| Wheel base | 2,760 mm (108.7 in) |
| Weight (operating) | 5,310 kg (11,705 lbs) |
| Fuel tank capacity | 122.3 liters (32.3 US gal.; 26.9 Imp. gal) |
| Battery | 12V |
| Cabin type | Two-post ROPS canopy or Cab (optional) |
| Engine | |
| Engine model | Perkins |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 6 |
| Fuel type | Diesel |
| Displacement | 5.8 L, 5,801 cm2, (354.0 cu·in) |
| Bore and stroke | 98.0 mm X 127.0 mm (3.86 in X 5 in) |
| Compression ratio | 16.0:1 |
| Horsepower | 86.2 PS (63.4 kW; 85.0 HP) at 2,200 rpm |
| Starter | Electric |
| Coolant capacity: | 22.7 L (24 US. qt, 20 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD or 4×4 MFWD 4WD |
| Steering type | Hydrostatic power |
| Brakes | Independent hydraulic dry disc |
| Transmission model | – |
| Transmission type | Unsynchronized |
| Gears | 6 forward and 2 reverse |
| Transmission model | Hydraul-Shift |
| Transmission type | Partial powershift |
| Gears | 18 forward and 6 reverse |
| Speed | Forward: 27.4 kmh (17 mph) Reverse: 9.3 (5.8 mph) |
| Tires | |
| Front tires | Ag: 9.5L-15 |
| Rear tires | Ag: 18.4-34 |
| Three-Point Hitch | |
| Category | II |
| Control type | – |
| Lift capacity (at ends) | 1,815 kg (4,000 lbs) |
| PTO (Power take-off shaft) | |
| Rear PTO type | Independent |
| Rear PTO speed | 540/1000 rpm |
| Hydraulic system | |
| Hydraulic type | – |
| Pump flow | 21.0 gpm (79.5 lpm) |
