AGCO Allis 4650

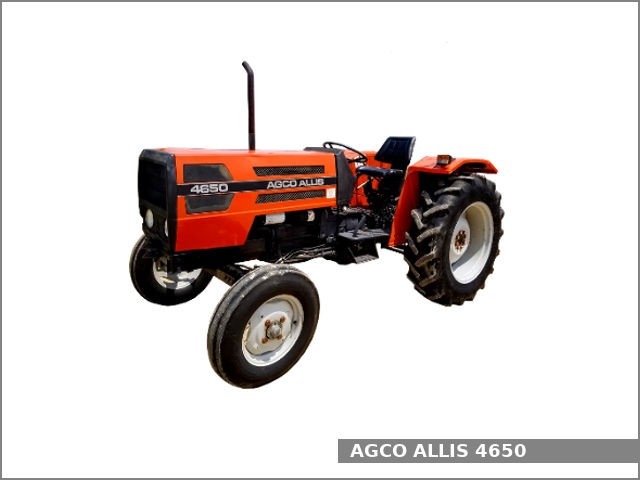

AGCO Allis 4650The AGCO Allis 4650 is a 2WD/4WD utility tractor from the 4600 series. This tractor was manufactured by the SAME in Italy for AGCO Allis a part of AGCO from 1991 to 1997. The AGCO Allis 4650 is equipped with 3.1 L three-cylinders diesel engine and Synchromesh transmission with 12 forward and 3 reverse gears or 16 forward and 4 reverse.

The AGCO Allis 4650 utility tractor used 3.1 L, 3113 cm2, (190 cu·in) three-cylinders air-cooled diesel engine. This engine produced 50.7 PS (37.3 kW; 50 HP) of maximum output power.

The AGCO Allis 4650 is equipped with four-post ROPS (Rollover protection structure) and 55.0 liters (14.5 US gal.; 12.1 Imp. gal) fuel tank.

AGCO Allis 4650 Specifications

General Specifications
Model AGCO Allis 4650
Length
Width
Height
Wheel base 2,110 mm (83.1 in)
Weight 2,030 kg (4,475 lbs)
Fuel tank capacity 55.0 liters (14.5 US gal.; 12.1 Imp. gal)
Battery 12V
Cabin type Four-post ROPS
Engine
Engine model SLH
Engine type Four-stroke, air-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 3.1 L, 3,113 cm2, (190 cu·in)
Bore and stroke
Horsepower 50.7 PS (37.3 kW; 50 HP)
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or x4 MFWD 4WD
Steering type
Brakes
Transmission model
Transmission type Synchromesh
Gears 12 forward and 3 reverse
Transmission model
Transmission type
Gears 16 forward and 4 reverse
Tires
Front tires Ag: 6.50-16
Rear tires Ag: 13.6R28
Three-Point Hitch
Caterogy I
Control type
Lift capacity 2100 kg (4631 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Valves 1
Pump flow 10.3 gpm (39 lpm)
