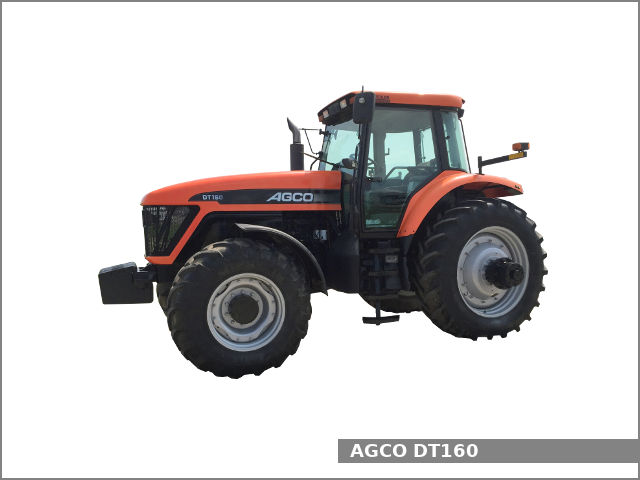

AGCO DT160

AGCO DT160The AGCO DT160 is a 4WD row-crop tractor from the DT series. This tractor was manufactured by the AGCO in Beauvais, France from 2002 to 2004. The AGCO DT160 is equipped with 8.3 L diesel engine and full power shift transmission (18 forward and 6 reverse gears) with electro-hydraulic wet disc clutch.

The AGCO DT160 row-crop tractor used the Cummins C8.3 engine. It is a 8.3 L, 8,275 cm2, (505 cu·in) six-cylinder turbocharged diesel engine with 114.0 mm (4.49 in) of cylinder bore and 135.0 mm (5.31 in) of piston stroke. The compression ratio rating is 17.2:1. This engine produced 162.2 PS (119.3 kW; 160 HP) at 2,200 rpm of maximum output power and 730 N·m (74.4 kg·m, 538 ft·lb) at 1,250 rpm of peak torque.

The AGCO DT160 is equipped with hydrostatic power steering, hydraulic wet disc brakes, cabin (standard) and 455 liters (120.2 US gal.; 100.1 Imp. gal) fuel tank.

AGCO DT160 Specifications

General Specifications
Model AGCO DT160
Length 5,150 mm (202.8 in)
Width 2,490 mm (98 in)
Height 3,070 mm (120.9 in)
Wheel base 3,070 mm (120.9 in)
Weight 8,390 kg (18,500 lbs)
Fuel tank capacity 455 liters (120.2 US gal.; 100.1 Imp. gal)
Battery 12V
Cabin type Cab standard
Engine
Engine model Cummins C8.3
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 8.3 L, 8,275 cm2, (505 cu·in)
Bore and stroke 114.0 mm X 135.0 mm (4.49 in X 5.31 in)
Compression ratio 17.3:1
Horsepower 162.2 PS (119.3 kW; 160 HP) at 2,200 rpm
Torque 730 N·m (74.4 kg·m, 538 ft·lb) at 1,250 rpm
Starter Electric
Oil capacity: 19.9 L (21.03 US. qt, 17.51 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Hydraulic wet disc
Transmission model
Transmission type Full power shift with electro-hydraulic wet disc clutch
Gears 18 forward and 6 reverse
Speed Forward: 36.4 kmh (22.6 mph) Reverse: 10.2 (6.3 mph)
Tires
Front tires 14.9R30
Rear tires 18.4R42
Three-Point Hitch
Caterogy III/IIIN
Control type
Lift capacity 7,260 kg (16,000 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO spped 540/1000 rpm
Hydraulic system
Hydraulic type Closed center pressure flow compensated (PFC)
Pressure 2,900 psi (199.9 bar)
Valves 4
Pump flow 29.0 gpm (109.8 lpm)
