AGCO DT200A

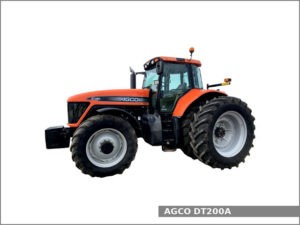

AGCO DT200AThe AGCO DT200A is a 4WD row-crop tractor from the DT series. This tractor was manufactured by the AGCO in Beauvais, France from 2005 to 2008. The AGCO DT200A is equipped with 7.4 L diesel engine and continuously variable transmission with infinite (two-range) forward and reverse gears

The AGCO DT200A row-crop tractor used the Sisu diesel engine. it is a 7.4 L, 7,358 cm2, (449 cu·in) six-cylinder turbocharged diesel engine with intercooler. This engine has 108.0 mm (4.25 in) of the cylinder bore and 134.0 mm (5.28 in) of the piston stroke. The compression ratio rating is 17.5:1. This engine produced 238.3 PS (175.2 kW; 235 HP) at 2,200 rpm of maximum output power.

The AGCO DT200A is equipped with hydrostatic power steering, hydraulic wet disc brakes, cabin with optional pneumatic suspension and 600.0 liters (158.5 US gal.; 132 Imp. gal) fuel tank.

AGCO DT200A Specifications

General Specifications
ModelAGCO DT200A
Length5,230 mm (205.9 in)
Width
Height3,090 mm (121.7 in)
Wheel base3,070 mm (120.9 in)
Weight8,680 kg (19,136 lbs)
Fuel tank capacity600.0 liters (158.5 US gal.; 132 Imp. gal)
Battery12V
Cabin typeCab with optional pneumatic suspension
Engine
Engine modelSisu Diesel
Engine typeFour-stroke, liquid-cooled, inline
Cylinders6
Fuel typeDiesel
Displacement7.4 L, 7,358 cm2, (449 cu·in)
Bore and stroke108.0 mm X 134.0 mm (4.25 in X 5.28 in)
Compression ratio17.5:1
Horsepower238.3 PS (175.2 kW; 235 HP) at 2,200 rpm
StarterElectric
Transmission and chassis
Chassis4×4 MFWD 4WD
Steering typeHydrostatic power
BrakesHydraulic wet disc
Transmission modelPowerMaxx CVT
Transmission typeContinuously variable transmission
GearsInfinite (two-range) forward and reverse
Speed Forward: 40.2 kmh (25 mph) Reverse: 19.3 (12 mph)
Tires
Front tires
Rear tires
Three-Point Hitch
CaterogyIII
Control type
Lift capacity6,530 kg (14,400 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent
Rear PTO spped540/1000 rpm
Hydraulic system
Hydraulic typeClosed center pressure flow compensated (PFC)
Pressure2900 psi (199.9 bar)
Valves4 or 5
Pump flow39.0 gpm (147.6 lpm)
