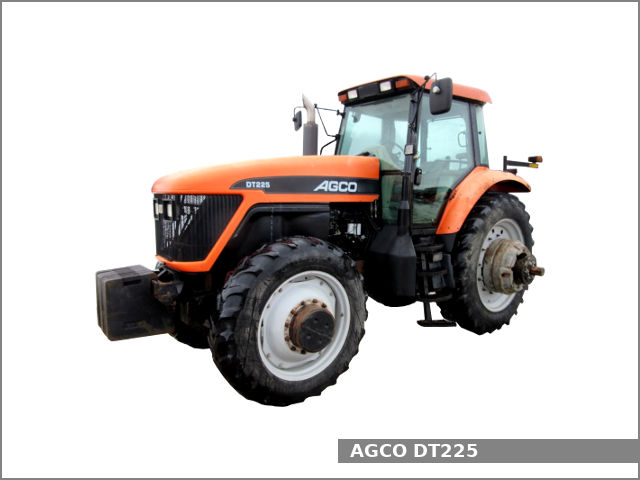

The AGCO DT225 is a 4WD row-crop tractor from the DT series. This tractor was manufactured by AGCO in Beauvais, France from 2002 to 2004. The AGCO DT225 is equipped with an 8.3 L (505.0 cu·in) six-cylinder diesel engine and a full powershift transmission with electro-hydraulic wet disc clutch and 18 forward and 6 reverse gears.
The AGCO DT225 row-crop tractor used the Cummins C8.3L engine. It is a 8.3 L, 8,275 cm2, (505.0 cu·in) six-cylinder turbocharged intercooled diesel engine with 114.0 mm (4.49 in) of the cylinder bore and 135.0 mm (5.31 in) of the piston stroke. This engine produced 228.2 PS (167.8 kW; 225.0 HP) at 2,200 rpm of PTO output power and 918.0 N·m (93.6 kg·m, 676.6 ft·lb) at 1498 rpm of torque.
The AGCO DT225 is equipped with hydrostatic power steering, hydraulic wet disc brakes, Cab, and 454.2 liters (120 US gal.; 99.9 Imp. gal) fuel tank.
AGCO DT225 Specifications
|Length||5,150 mm (202.8 in)|
|Width||2,490 mm (98 in)|
|Height||3,070 mm (120.9 in)|
|Wheel base||3,070 mm (120.9 in)|
|Weight||8,935 kg (19,698 lbs)|
|Fuel tank capacity||454.2 liters (120 US gal.; 99.9 Imp. gal)|
|Engine model||Cummins C8.3L|
|Engine type||Four-stroke, liquid-cooled, inline|
|Displacement||8.3 L, 8,275 cm2, (505.0 cu·in)|
|Bore and stroke||114.0 mm X 135.0 mm (4.49 in X 5.31 in)|
|Horsepower||228.2 PS (167.8 kW; 225.0 HP) at 2,200 rpm|
|Torque||918.0 N·m (93.6 kg·m, 676.6 ft·lb) at 1,498 rpm|
|Transmission and chassis|
|Chassis||4×4 MFWD 4WD|
|Steering type||Hydrostatic power|
|Brakes||Hydraulic wet disc|
|Transmission type||Full power shift with electro-hydraulic wet disc clutch|
|Gears||18 forward and 6 reverse|
|Speed||Forward: 37.2 kmh (23.1 mph) Reverse: 10.4 (6.5 mph)|
|Lift capacity (at ends)||8,620 kg (19,005 lbs)|
|PTO (Power take-off shaft)|
|Rear PTO type||Independent|
|Rear PTO speed||1,000 rpm|
|Hydraulic type||Closed center pressure flow compensated (PFC)|
|Pressure||2900 psi (199.9 bar)|
29.0 gpm (109.8 lpm)
39.0 gpm (147.6 lpm)
