Allis Chalmers 6080

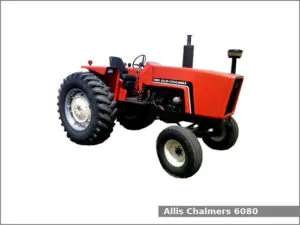

Allis Chalmers 6080The Allis Chalmers 6080 is a 2WD or 4WD row-crop tractor from the 6000 series. This tractor was manufactured by Allis Chalmers in West Allis, Wisconsin, USA from 1980 to 1985. The Allis Chalmers 6080 is equipped with a 3.3 L (200.0 cu·in) four-cylinder diesel engine and a synchronized transmission with 12 forward and 3 reverse gears.

The Allis Chalmers 6080 row-crop tractor used the Allis Chalmers 433TI engine. It is a 3.3 L, 3,277 cm2, (200.0 cu·in) four-cylinder turbocharged and intercooled diesel engine with 98.0 mm (3.86 in) of the cylinder bore and 108.0 mm (4.25 in) of the piston stroke. The compression ratio rating is 14.1:1 for the early versions and 15.5:1 for the later. This engine produced 94.2 PS (69.3 kW; 93.0 HP) at 2,300 rpm of output power.

The Allis Chalmers 6080 is equipped with hydrostatic power steering, differential hydraulic wet disc brakes, Four-post ROPS canopy or cab, and 121.0 liters (32 US gal.; 26.6 Imp. gal) fuel tank.

Allis Chalmers 6080 Specifications

General Specifications
ModelAllis Chalmers 6080
Length3,790 mm (149.2 in)
Width1,850 mm (72.8 in)
Height ROPS: 2,730 mm (107.5 in)
Cab: 2,620 mm (103.2 in)
Wheel base 2WD: 2,430 mm (95.7 in)
4WD: 2,420 mm (95.3 in)
Weight (2WD ROPS)2,950 kg (6,504 lbs)
Fuel tank capacity121.0 liters (32 US gal.; 26.6 Imp. gal)
Cabin typeFour-post ROPS canopy or cab with air-conditoning (optional)
Engine modelAllis Chalmers 433TI
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement3.3 L, 3,277 cm2, (200.0 cu·in)
Bore and stroke98.0 mm X 108.0 mm (3.86 in X 4.25 in)
Compression ratio Early: 14.1:1,
Later: 15.5:1
Horsepower94.2 PS (69.3 kW; 93.0 HP) at 2,300 rpm
Oil capacity:9.5 L (10 US. qt, 8.4 Imp. qt.)
Coolant capacity:16.1 L (17 US. qt, 14.2 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typeHydrostatic power
BrakesDifferential hydraulic wet disc
Transmission model
Transmission typeSynchronized
Gears12 forward and 3 reverse
Speed Forward: 29.0 kmh (18 mph) Reverse: 13.5 (8.4 mph)
Front tiresAg: 7.50-16 (2WD), 11.2-28 (4WD)
Rear tiresAg: 18.4-34 (2WD), 16.9-34 (4WD)
Three-Point Hitch
Control type
Lift capacity (at 610 mm /24 in)2,040 kg (4,500 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent
Rear PTO speed540/1,000 rpm
Hydraulic system
Hydraulic typeOpen center
Pump flow11.4 gpm (43.2 lpm)
Steering flow19.0 gpm (71.9 lpm)
