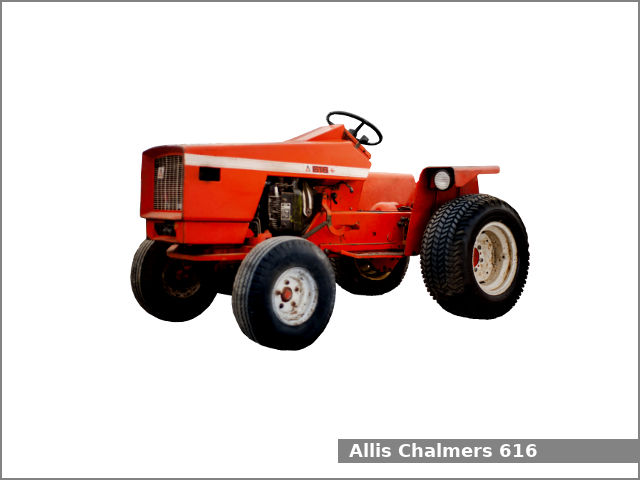

The Allis Chalmers 616 is a 2WD sub-compact utility tractor manufactured by Simplicity for distributor Allis Chalmers from 1972 to 1973. The Allis Chalmers 616 is equipped with a 0.8 L (49.8 cu·in) two-cylinder gasoline engine and a hydrostatic transmission with infinite (3-range) forward and reverse gears.
The Allis Chalmers 616 sub-compact utility tractor used the Onan CCK engine. It is a 0.8 L, 816 cm2, (49.8 cu·in) two-cylinder natural aspirated gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 76.0 mm (2.99 in) of the piston stroke. This engine produced 16.7 PS (12.3 kW; 16.5 HP) of output power.
Allis Chalmers 616 Specifications
General Specifications |
Model |
Allis Chalmers 616 |
Length |
2,100 mm (82.7 in) |
Width |
1,210 mm (47.6 in) |
Height |
1,090 mm (42.9 in) |
Wheel base |
– |
Ground clearance |
380 mm (15 in) |
Weight |
680 kg (1,499 lbs) |
Fuel tank capacity |
14.5 liters (3.8 US gal.; 3.2 Imp. gal) |
Battery |
12V |
Cabin type |
Open operator station |
Engine |
Engine model |
Onan CCK |
Engine type |
Four-stroke, air-cooled, inline |
Cylinders |
2 |
Fuel type |
Gasoline |
Displacement |
0.8 L, 816 cm2, (49.8 cu·in) |
Bore and stroke |
83.0 mm X 76.0 mm (3.27 in X 2.99 in) |
Horsepower |
16.7 PS (12.3 kW; 16.5 HP) |
Starter |
Electric |
Transmission and chassis |
Chassis |
4×2 2WD |
Steering type |
– |
Brakes |
– |
Transmission model |
|
Transmission type |
Hydrostatic |
Gears |
Infinite (3-range) forward and reverse |
Tires |
Front tires |
– |
Rear tires |
– |
PTO (Power take-off shaft) |
Front PTO type |
– |
Front PTO speed |
2,000 rpm |
Rear PTO type |
– |
Rear PTO speed |
2,000 rpm |
Hydraulic system |
Hydraulic type |
– |
Hydraulic capacity |
4.7 L (4.97 US. qt, 4.14 Imp. qt.) |
Pressure |
500 psi (34.5 bar) |
Pump flow |
2.25 gpm (8.5 lpm) |
