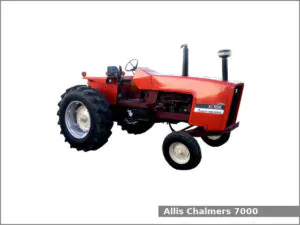

The Allis Chalmers 7000 is a 2WD tractor manufactured by Allis Chalmers in West Allis, Wisconsin, USA from 1975 to 1979. The Allis Chalmers 7000 had two versions, the maroon or brown chassis (form 1975 to 1978, S/N 8000) and the later black chassis (1978-1979).
The Allis Chalmers 7000 is equipped with one of two engines: the Allis Chalmers 2900 (brown chassis version) or the Allis Chalmers 649T (black chassis), it is a 4.9 L (301.0 cu·in) six-cylinder turbocharged diesel engines and a partial power shift transmission with 12 forward and 3 reverse gears. The black-chassis version featured a new transmission design.
The tractor could be equipped with the following engines:
- Allis Chalmers 2900. It is a 4.9 L, 4,932 cm2, (301.0 cu·in) six-cylinder turbocharged diesel engine with 98.0 mm (3.86 in) of the cylinder bore and 108.0 mm (4.25 in) of the piston stroke. The compression ratio rating is 16.25:1. This engine produced 118.6 PS (87.2 KW; 117.0 HP) at 2,200 rpm of max horsepower and 107.4 PS (79.0 kW; 106.0 HP) at 2,200 rpm of PTO output power.
- Allis Chalmers 649T. It is a 4.9 L, 4,932 cm2, (301.0 cu·in) six-cylinder turbocharged diesel engine. The cylinder bore is 98.0 mm (3.86 in) and the piston stroke is 108.0 mm (4.25 in). The compression ratio rating is 16.25:1. This engine produced 118.6 PS (87.2 KW; 117.0 HP) at 2,200 rpm of max horsepower and 107.4 PS (79.0 kW; 106.0 HP) at 2,200 rpm of PTO output power.
The AC 7000 is equipped with power steering, differential dry disc brakes, the Acousta-Cab (optional for brown chassis), or the Acousta-Cab II (for black chassis), and 140.0 liters (37 US gal.; 30.8 Imp. gal) fuel tank.
Allis Chalmers 7000 Specifications
| General Specifications | |
| Model | Allis Chalmers 7000 |
| Length | 4,640 mm (182.7 in) |
| Width | – |
| Height | 2,870 mm (113 in) |
| Wheel base | 2,690 mm (105.9 in) |
| Weight | 4,330 kg (9,546 lbs) |
| Fuel tank capacity | 140.0 liters (37 US gal.; 30.8 Imp. gal) |
| Battery | 12V, 95Ah, one or two (optional) |
| Cabin type | Acousta-Cab optional or Acousta-Cab II (from 1978) |
| Engine | |
| Engine model | Allis Chalmers 2900 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 6 |
| Fuel type | Diesel |
| Displacement | 4.9 L, 4,932 cm2, (301.0 cu·in) |
| Bore and stroke | 98.0 mm X 108.0 mm (3.86 in X 4.25 in) |
| Compression ratio | 16.25:1 |
| Horsepower | 118.6 PS (87.2 KW; 117.0 HP) at 2,200 rpm |
| Starter | Electric |
| Oil capacity: | 15.1 L (16 US. qt, 13.3 Imp. qt.) |
| Coolant capacity: | 21.3 L (22.5 US. qt, 18.7 Imp. qt.) |
| Engine | |
| Engine model | Allis Chalmers 649T |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 6 |
| Fuel type | Diesel |
| Displacement | 4.9 L, 4,932 cm2, (301.0 cu·in) |
| Bore and stroke | 98.0 mm X 108.0 mm (3.86 in X 4.25 in) |
| Compression ratio | 16.25:1 |
| Horsepower | 118.6 PS (87.2 KW; 117.0 HP) at 2,200 rpm |
| Starter | Electric |
| Coolant capacity: | 21.3 L (22.5 US. qt, 18.7 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Power |
| Brakes | Differential dry disc |
| Rear differential | 30.3 L (8 US gal, 6.7 Imp. gal) |
| Transmission model | Power Director |
| Transmission type | Partial power shift |
| Gears | 12 forward and 3 reverse |
| Speed | Forward: 31.0 kmh (19.3 mph) Reverse: 9.0 (5.6 mph) |
| Transmission oil capacity | 24.6 L (6.5 US. gal, 5.4 Imp. gal.) |
| Tires | |
| Front tires | Ag: 10.00-16 |
| Rear tires | Ag: 18.4-38 |
| Three-Point Hitch | |
| Caterogy | II |
| Control type | – |
| Lift capacity (at ends) | – |
| PTO (Power take-off shaft) | |
| Rear PTO type | Independent |
| Rear PTO speed | 1,000 rpm |
| Hydraulic system | |
| Hydraulic type | Open center |
| Hydraulic capacity | 26.5 L (28 US. qt, 23.32 Imp. qt.) |
| Valves | 1 |
| Pump flow | 21.0 gpm (79.5 lpm) |
| Steering flow | 4.0 gpm (15.1 lpm) |
| Total flow | 25.0 gpm (94.6 lpm) |
