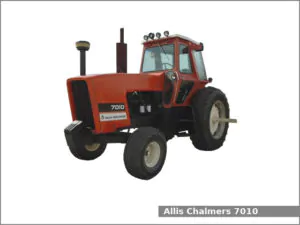

Allis Chalmers 7010

Allis Chalmers 7010The Allis Chalmers 7010 is a 2WD row-crop tractor manufactured by Allis Chalmers in West Allis, Wisconsin, USA from 1980 to 1981. The Allis Chalmers 7010 is equipped with a 4.9 L (301.0 cu·in) six-cylinder diesel engine and one of three transmissions: a partial power shift transmission with 16 forward and 4 reverse gears, a partial power shift transmission with 20 forward and 4 reverse gears or a partial power shift transmission with 12 forward and 2 reverse gears.

The Allis Chalmers 7010 row-crop tractor used the Allis Chalmers 649T engine. It is a 4.9 L, 4,932 cm2, (301.0 cu·in) six-cylinder turbocharged diesel engine with 98.0 mm (3.86 in) of the cylinder bore and 108.0 mm (4.25 in) of the piston stroke. The compression ratio rating is 16.25:1. This engine produced 119.7 PS (88.0 kW; 118.0 HP) at 2,200 rpm of output power.

The Allis Chalmers 7010 is equipped with hydrostatic power steering, differential hydraulic wet disc brakes, the Acousta-Cab with heat or Four-post ROPS (optional), and 204.4 liters (54 US gal.; 45 Imp. gal) fuel tank.

Allis Chalmers 7010 Specifications

General Specifications
Model Allis Chalmers 7010
Length
Width 2,350 mm (92.5 in)
Height (exhaust) 2,940 mm (115.7 in)
Wheel base 2,690 mm (105.9 in)
Weight 5,110 kg (11,266 lbs)
Fuel tank capacity 204.4 liters (54 US gal.; 45 Imp. gal)
Battery 12V, 95Ah, one or two (optional)
Cabin type Acousta-Cab with heat or Four-post ROPS (optional)
Engine
Engine model Allis Chalmers 649T
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 4.9 L, 4,932 cm2, (301.0 cu·in)
Bore and stroke 98.0 mm X 108.0 mm (3.86 in X 4.25 in)
Compression ratio 16.25:1
Horsepower 119.7 PS (88.0 kW; 118.0 HP) at 2,200 rpm
Starter Electric
Oil capacity: 18.9 L (20 US. qt, 16.6 Imp. qt.)
Coolant capacity: 24.6 L (26 US. qt, 21.6 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Hydrostatic power
Brakes Differential hydraulic wet disc
Final drive Inboard planetary
Differential lock Power
Transmission model Power Director
Transmission type Partial power shift
Gears 16 forward and 4 reverse
Speed Forward: 30.2 kmh (18.8 mph) Reverse: 13.5 (8.4 mph)
Transmission oil capacity 28.0 L (7.4 US. gal, 6.2 Imp. gal.)
Transmission model Power Director
Transmission type Partial power shift
Gears 20 forward and 4 reverse
Speed Forward: 30.2 kmh (18.8 mph) Reverse: 13.5 (8.4 mph)
Transmission oil capacity 28.0 L (7.4 US. gal, 6.2 Imp. gal.)
Transmission model Power Shift
Transmission type Partial power shift
Gears 12 forward and 2 reverse
Speed Forward: 26.9 kmh (16.7 mph) Reverse: 11.6 (7.2 mph)
Transmission oil capacity 28.0 L (7.4 US. gal, 6.2 Imp. gal.)
Tires
Front tires Ag: 10.00-16
Rear tires Ag: 18.4-38
Three-Point Hitch
Caterogy III/II
Control type
Lift capacity (at 610 mm /24 in) 3,030 kg (6,680 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/1,000 rpm
Hydraulic system
Hydraulic type Closed center
Hydraulic capacity 28.0 L (29.59 US. qt, 24.64 Imp. qt.)
Valves 2
Pump flow 22.0 gpm (83.3 lpm)
Transmission: 13.5 gpm (51.1 lpm)
Steering flow 9.5 gpm (36 lpm)
Total flow 45.0 gpm (170.3 lpm)
