Massey Ferguson 1250

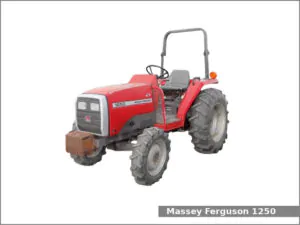

Massey Ferguson 1250The Massey Ferguson 1250 is a 2WD or 4WD compact utility tractor from the 1200 Compact series. This tractor was manufactured by Iseki for distributor Massey Ferguson from 1992 to 2002. The Massey Ferguson 1250 is equipped with a 1.5 L (91.4 cu·in) three-cylinder diesel engine and a synchro shuttle transmission with 16 forward and reverse gears and dry disc clutch.

The Massey Ferguson 1250 compact utility tractor used the Iseki TK532 engine. It is a 1.5 L, 1,498 cm2, (91.4 cu·in) three-cylinder natural aspirated diesel engine. The compression ratio rating is 21.8:1. This engine produced 34.5 PS (25.4 kW; 34.0 HP) at 2,600 rpm of output power and 100.3 N·m (10.2 kg·m, 73.9 ft·lb) at 1,600 rpm of torque.

The Massey Ferguson 1250 is equipped with power assist steering, wet disc brakes, two-post ROPS, and 30.0 liters (7.9 US gal.; 6.6 Imp. gal) fuel tank.

Following attachments are available for the MF 1250 compact utility tractor:

  • Mid-mount Massey Ferguson 1231: 1,820 mm (72.0 in) mower deck
  • Front-mount Massey Ferguson 1405: 1,670 mm (66.0 in) blade with hydraulic lift
  • Front-mount Massey Ferguson 1410: 1,630 mm (63.0 in) snowblower

Massey Ferguson 1250 Specifications

General Specifications
Model Massey Ferguson 1250
Length 3,090 mm (121.7 in)
Width 1,400 mm (55.1 in)
Height (ROPS) 2,160 mm (85 in)
Wheel base 1,720 mm (67.7 in)
Ground clearance 300 mm (11.8 in)
Weight 2WD: 1,220 kg (2,690 lbs)
4WD: 1,245 kg (2,745 lbs)
Fuel tank capacity 30.0 liters (7.9 US gal.; 6.6 Imp. gal)
Battery 12V, CCA 450A
Cabin type Two-post ROPS
Engine
Engine model Iseki TK532
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.5 L, 1,498 cm2, (91.4 cu·in)
Bore and stroke
Compression ratio 21.8:1
Horsepower 34.5 PS (25.4 kW; 34.1 HP) at 2,600 rpm
Torque 100.3 N·m (10.2 kg·m, 73.9 ft·lb) at 1,600 rpm
Starter Electric
Coolant capacity: 6.5 L (6.9 US. qt, 5.7 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power assist
Brakes Wet disc
Transmission model
Transmission type Synchro shuttle with dry disc clutch
Gears 16 forward and reverse
Speed Forward: 25.0 kmh (15.5 mph) Reverse: kmh (0 mph)
Tires
Front tires Ag: 5.50-16
Rear tires Ag: 12.4-24
Three-Point Hitch
Category I
Control type Position control
Lift capacity (at ends) 1,300 kg (2,865 lbs)
PTO (Power take-off shaft)
Middle PTO type Independent with electro-hydraulic clutch (optional)
Middle PTO speed 1,960 rpm
Rear PTO type Independent with electro-hydraulic clutch
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 25.0 L (6.6 US. gal, 5.5 Imp. gal.)
Pump flow 6.3 gpm (23.8 lpm)
Total flow 9.6 gpm (36.3 lpm)
