Allis Chalmers 7050

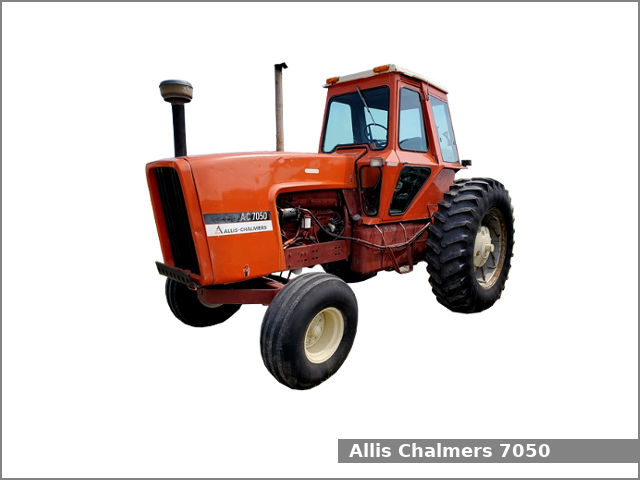

Allis Chalmers 7050The Allis Chalmers 7050 is a 2WD row-crop tractor from the 7000 series. This tractor was manufactured by Allis Chalmers in West Allis, Wisconsin, USA from 1973 to 1974. The Allis Chalmers 7050 is equipped with a 7.0 L (426.0 cu·in) six-cylinder diesel engine and a partial power shift transmission with 20 forward and 4 reverse gears.

The Allis Chalmers 7050 row-crop tractor used the Allis Chalmers engine. It is a 7.0 L, 6,980 cm2, (426.0 cu·in) six-cylinder turbocharged intercooled diesel engine with 108.0 mm (4.25 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 16.0:1. This engine produced 175.4 PS (129.0 kW; 173.0 HP) at 2,300 rpm of output power.

The Allis Chalmers 7050 is equipped with hydrostatic power steering, differential hydraulic wet discs brakes, open operator station or cab (optional), and 193.0 liters (51 US gal.; 42.5 Imp. gal) fuel tank.

Allis Chalmers 7050 Specifications

General Specifications
ModelAllis Chalmers 7050
Length4,140 mm (163 in)
Width2,420 mm (95.3 in)
Height2,940 mm (115.7 in)
Wheel base–
Weight6,590 kg (14,528 lbs)
Fuel tank capacity193.0 liters (51 US gal.; 42.5 Imp. gal)
Battery12V
Cabin typeOpen operator station or Cab (optional)
Engine
Engine modelAllis Chalmers
Engine typeFour-stroke, liquid-cooled, inline
Cylinders6
Fuel typeDiesel
Displacement7.0 L, 6,980 cm2, (426.0 cu·in)
Bore and stroke108.0 mm X 127.0 mm (4.25 in X 5 in)
Compression ratio16.0:1
Horsepower175.4 PS (129.0 kW; 173.0 HP) at 2,300 rpm
StarterElectric
Transmission and chassis
Chassis4×2 2WD
Steering typeHydrostatic power
BrakesDifferential hydraulic wet discs
Transmission modelPower Director XX
Transmission typePartial power shift
Gears20 forward and 4 reverse
Tires
Front tiresAg: 11.00-16
Rear tiresAg: 20.8-38
Three-Point Hitch
CaterogyIII/II
Control type–
Lift capacity (at ends)–
PTO (Power take-off shaft)
Rear PTO typeIndependent
Rear PTO speed540/1,000 rpm
Hydraulic system
Hydraulic typeOpen center
