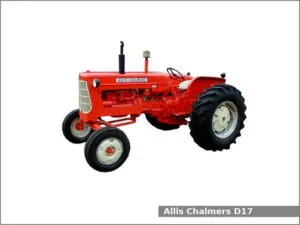

The Allis Chalmers D17 is a 2WD row-crop tractor from the D series. This tractor was manufactured by Allis Chalmers in West Allis, Wisconsin, USA from 1957 to 1967. The Allis Chalmers D17 is equipped with one of two engines: a 3.7 L four-cylinder gasoline engine or 4.3 L diesel engine and partial power shift transmission with 8 forward and 2 reverse gears.
The Allis Chalmers D17 is equipped with manual or power (option) steering, open operator station and 72.0 liters (19 US gal.; 15.8 Imp. gal) fuel tank for gasoline/diesel version or 84.4 liters (22.3 US gal, 18.6 Imp. gal) for LP-gas version.
The tractor could be equipped with the following engines:
- Allis-Chalmers gasoline / LP-gas engine. It is a 3.7 L, 3,703 cm2, (226.0 cu·in) four-cylinder natural aspirated gasoline engine with 102.0 mm (4.02 in) of the cylinder bore and 114.0 mm (4.49 in) of the piston stroke. The compression ratio rating is 7.25:1 for gasoline version or 8.25:1 for LP-gas version. The gasoline version of this engine produced 63.9 PS (47.0 kW; 63.0 HP) at 1,650 rpm of output power.
- Allis Chalmers diesel engine. It is a 4.3 L, 4,293 cm2, (262.0 cu·in) six-cylinder natural aspirated diesel engine. The cylinder bore is 90.0 mm (3.54 in) and the piston stroke is 111.0 mm (4.37 in). The compression ratio rating is 15.7:1. This engine produced 61.9 PS (45.5 kW; 61.0 HP) at 1,650 rpm of maximum output power.
Allis Chalmers D17 Specifications
| General Specifications | |
| Model | Allis Chalmers D17 |
| Length |
Gasoline: 3,550 mm (139.8 in) Diesel: 3,630 mm (143.0 in) |
| Width | 1,940 mm (76.4 in) |
| Height | 2,050 mm (80.7 in) |
| Wheelbase |
Gasoline: 2,360 mm (92.9 in) Diesel: 2,430 mm (95.7 in) |
| Weight (operating) | 2,120 kg (4,675 lbs) |
| Fuel tank capacity |
Gasoline/diesel: 72.0 liters (19 US gal.; 15.8 Imp. gal) LP-gas: 84.4 liters (22.3 US gal, 18.6 Imp. gal) |
| Battery | – |
| Cabin type | Open operator station |
| Engine | |
| Engine model | Allis-Chalmers |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 4 |
| Fuel type | Gasoline |
| Displacement | 3.7 L, 3703 cm2, (226 cu·in) |
| Bore and stroke | 102.0 mm X 114.0 mm (4.02 in X 4.49 in) |
| Compression ratio | 7.25:1 |
| Horsepower | 63.9 PS (47.0 kW; 63 HP) at 1,650 rpm |
| Starter | Electric |
| Coolant capacity: | 13.7 L (14.5 US. qt, 12.1 Imp. qt.) |
| Engine | |
| Engine model | Allis Chalmers |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 6 |
| Fuel type | Diesel |
| Displacement | 4.3 L, 4293 cm2, (262 cu·in) |
| Bore and stroke | 90.0 mm X 111.0 mm (3.54 in X 4.37 in) |
| Compression ratio | 15.7:1 |
| Horsepower | 61.9 PS (45.5 kW; 61 HP) at 1,650 rpm |
| Starter | electric |
| Oil capacity: | 5.7 L (6 US. qt, 5 Imp. qt.) |
| Coolant capacity: | 15.1 L (16 US. qt, 13.3 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Manual or power (option) |
| Brakes | – |
| Transmission model | Power-Director |
| Transmission type | Partial power shift |
| Gears | 8 forward and 2 reverse |
| Speed | Forward: 19.0 kmh (11.8 mph) Reverse: 4.1 (2.5 mph) |
| Tires | |
| Front tires | Ag: 6.00-16 |
| Rear tires | Ag: 13-28, 14.9-28 |
| Three-Point Hitch | |
| Caterogy | II |
| Control type | – |
| Lift capacity (at ends) | – |
| PTO (Power take-off shaft) | |
| Rear PTO type | Live |
| Rear PTO speed | 540 rpm |
| Hydraulic system | |
| Hydraulic type | Open center |
| Hydraulic capacity | 36.9 L (38.99 US. qt, 32.47 Imp. qt.) |
| Pressure | 2000 psi (137.9 bar) |
| Valves | 1 |
| Total flow | 10.5 gpm (39.7 lpm) |
