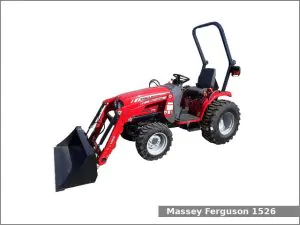

Massey Ferguson 1526

Massey Ferguson 1526The Massey Ferguson 1526 is a 4WD compact utility tractor from the 1500 series. This tractor was manufactured by Massey Ferguson since 2011. The Massey Ferguson 1526 is equipped with a 1.5 L (91.4 cu·in) three-cylinder diesel engine and a hydrostatic transmission with infinite (3-range) forward and reverse gears.

The MF 1526 compact utility tractor used the Iseki E3CF-VB22 engine. It is a 1.5 L, 1,498 cm2, (91.4 cu·in) three-cylinder natural aspirated diesel engine with 87.0 mm (3.43 in) of the cylinder bore and 84.0 mm (3.31 in) of the piston stroke. This engine produced 25.2 PS (18.5 kW; 24.8 HP) at 2,600 rpm of output power.

The Massey Ferguson 1526 is equipped with power steering, wet disc brakes, two-post foldable ROPS, and 27.0 liters (7.1 US gal.; 5.9 Imp. gal) fuel tank.

Following attachments are available for the Massey Ferguson 1526 compact utility tractor:

  • Mid-mount Massey Ferguson 60 in (1,520 mm) mower deck
  • Massey Ferguson L100E loader

Massey Ferguson 1526 Specifications

General Specifications
Model Massey Ferguson 1526
Length 2,810 mm (110.6 in)
Width 1,240 mm (48.8 in)
Height ROPS: 2,420 mm (95.3 in)
Wheel base 1,550 mm (61 in)
Ground clearance 270 mm (10.6 in)
Weight (shipping) 850 kg (1,874 lbs)
Fuel tank capacity 27.0 liters (7.1 US gal.; 5.9 Imp. gal)
Battery 12V
Cabin type Two-post foldable ROPS
Engine
Engine model Iseki E3CF-VB22
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.5 L, 1,498 cm2, (91.4 cu·in)
Bore and stroke 87.0 mm X 84.0 mm (3.43 in X 3.31 in)
Horsepower 25.2 PS (18.5 kW; 24.8 HP) at 2,600 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Differential lock Mechanical rear
Transmission model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Tires
Front tires Ag: 7-12
Lawn/turf: 25×8.50-14
Rear tires Ag: 35×12.00-16.5
Lawn/turf: 36×13.50-15
Three-Point Hitch
Category I
Control type Position control
Lift capacity (at ends) 600 kg (1,323 lbs)
PTO (Power take-off shaft)
Middle PTO type Independent
Middle PTO speed 2,000 rpm
Rear PTO type Independent with electro-hydraulic clutch
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
SCV flow 5.5 gpm (20.8 lpm)
Steering flow 3.2 gpm (12.1 lpm)
Total flow 8.7 gpm (32.9 lpm)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
