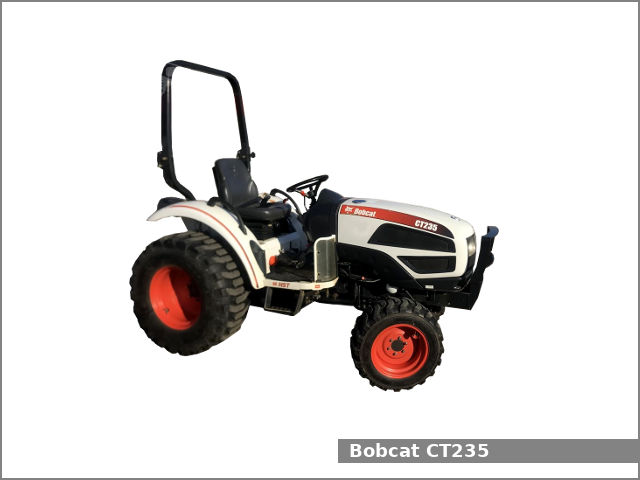

The Bobcat CT235 is a 4WD compact utility tractor manufactured by Daedong for distributor Bobcat in Daegu, South Korea from 2008 to 2013. The Bobcat CT235 is equipped with a 1.6 L (97.6 cu·in) three-cylinder diesel engine and a hydrostatic transmission with infinite (3-range) forward and reverse gears.
The Bobcat CT235 compact utility tractor used the Daedong engine. It is a 1.6 L, 1,599 cm2, (97.6 cu·in) three-cylinder natural aspirated diesel engine. This engine produced 34.5 PS (25.4 kW; 34.0 HP) of output power.
The Bobcat CT235 is equipped with hydrostatic power steering, integral wet disc brakes, two-post foldable ROPS, or Cab with air-conditioning (optional), and 30,0 liters (7.9 US gal.; 6.6 Imp. gal) fuel tank.
Following attachments are available for the Bobcat CT235 compact utility tractor:
- Mid-mount Bobcat 66 in (1,670 cm) mower deck with 3-blades and hydraulic lift
- Front-mount Bobcat FCTSB49 49 in (1,240 cm) two-stage snow blower with hydraulic lift
- Front-mount Bobcat FCTSB62 62 in (1,570 cm) two-stage snow blower with hydraulic lift
- Bobcat 7TL loader
- Bobcat 6TB backhoe
- Bobcat 7TB backhoe
Bobcat CT235 Specifications
| General Specifications | |
| Model | Bobcat CT235 |
| Length | 3,100 mm (122 in) |
| Width | 1,400 mm (55.1 in) |
| Height | 2,430 mm (95.7 in) |
| Wheel base | 1,670 mm (65.7 in) |
| Ground clearance | 250 mm (9.8 in) |
| Weight | 1,385 kg (3,053 lbs) |
| Fuel tank capacity | 30,0 liters (7.9 US gal.; 6.6 Imp. gal) |
| Battery | 12V |
| Cabin type | Two-post foldable ROPS or Cab with air-conditioning (optional) |
| Engine | |
| Engine model | Daedong |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 3 |
| Fuel type | Diesel |
| Displacement | 1.6 L, 1,599 cm2, (97.6 cu·in) |
| Bore and stroke | – |
| Horsepower | 34.5 PS (25.4 kW; 34.0 HP) |
| Starter | Electric |
| Transmission and chassis | |
| Chassis | 4×4 MFWD 4WD |
| Steering type | Hydrostatic power |
| Brakes | Integral wet disc |
| Transmission model | – |
| Transmission type | Hydrostatic |
| Gears | Infinite (3-range) forward and reverse |
| Speed | Forward: 21.0 kmh (13.1 mph) Reverse: 13.2 (8.2 mph) |
| Tires | |
| Front tires | Ag: 7×14 Lawn/turf: 27×8.5-15 |
| Rear tires | Ag: 11.2×24 Lawn/turf: 41×14-20 |
| Three-Point Hitch | |
| Caterogy | I |
| Control type | – |
| Lift capacity (at 610 mm / 24 in) | 685 kg (1510 lbs) |
| PTO (Power take-off shaft) | |
| Middle PTO type | Optional |
| Middle PTO speed | 2,000 rpm |
| Rear PTO type | Live |
| Rear PTO speed | 540 rpm |
| Hydraulic system | |
| Hydraulic type | – |
| Valves | 1 to 2 |
| Pump flow | 7.9 gpm (29.9 lpm) |
| Steering flow | 4.3 gpm (16.3 lpm) |
| Total flow | 12.2 gpm (46.2 lpm) |
