Bobcat CT335

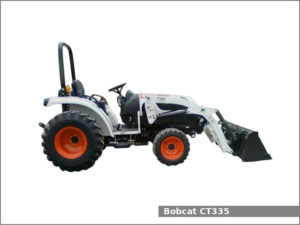

Bobcat CT335The Bobcat CT335 is a 4WD compact utility tractor manufactured by Daedong for distributor Bobcat in Daegu, South Korea from 2008 to 2013. The Bobcat CT335 is equipped with a 1.8 L (109.8 cu·in) three-cylinder diesel engine and one of two transmissions: a hydrostatic transmission with infinite (3-range) forward and infinite reverse gears or a shuttle transmission with 12 forward and 12 reverse gears.

The Bobcat CT335 compact utility tractor used the Daedong 3B183 engine. It is a 1.8 L, 1,799 cm2, (109.8 cu·in) three-cylinder natural aspirated diesel engine with 87.0 mm (3.43 in) of the cylinder bore and 102.4 mm (4.03 in) of the piston stroke. The compression ratio rating is 22.0:1. This engine produced 38.5 PS (28.3 kW; 38.0 HP) at 2,600 rpm of output power and 119.6 N·m (12.2 kg·m, 88.1 ft·lb) at 1,700 rpm of torque.

The CT335 is equipped with hydrostatic power steering, differential wet disc brakes, ROPS or cab (optional), and 45.0 liters (12.0 US gal, 9.9 Imp. gal) fuel tank.

Following attachments are available for the Bobcat CT335 compact utility tractor:

  • Bobcat 8TL loader
  • Bobcat 7TB backhoe
  • Bobcat 8TB backhoe

Bobcat CT335 Specifications

General Specifications
Model Bobcat CT335
Length 3,270 mm (128.7 in)
Width 1,590 mm (62.6 in)
Height ROPS: 1,610 mm (63.4 in)
Cab: 2,400 mm (94.5 in)
Wheel base 1,760 mm (69.3 in)
Ground clearance 340 mm (13.4 in)
Weight ROPS: 1,665 kg (3,671 lbs)
Cab: 1,850 kg (4,079 lbs)
Fuel tank capacity 45.0 liters (12.0 US gal, 9.9 Imp. gal)
Battery 12V
Cabin type ROPS or Cab (optional)
Engine
Engine model Daedong 3B183
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.8 L, 1,799 cm2, (109.8 cu·in)
Bore and stroke 87.0 mm X 102.4 mm (3.43 in X 4.03 in)
Compression ratio 22.0:1
Horsepower 38.5 PS (28.3 kW; 38.0 HP) at 2,600 rpm
Torque 119.6 N·m (12.2 kg·m, 88.1 ft·lb) at 1,700 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Differential wet disc
Transmission model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and infinite reverse
Speed Forward: 25.3 kmh (15.7 mph) Reverse: 17.2 (10.7 mph)
Transmission model
Transmission type Shuttle
Gears 12 forward and 12 reverse
Speed Forward: 24.0 kmh (14.9 mph) Reverse: 21.4 (13.3 mph)
Tires
Front tires Ag: 7×16
Lawn/turf: 27×8.5-15
Industrial: 27×10.5-15
Rear tires Ag: 12.4×24
Lawn/turf: 41×14-20
Industrial: 43×16-20
Three-Point Hitch
Category I
Control type
Lift capacity (at 610 mm/24 in) 770 kg (1,700 lbs)
PTO (Power take-off shaft)
Middle PTO type Optional
Middle PTO speed 2,000 rpm
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type
Valves 1 or 2
Pump flow 7.9 gpm (29.9 lpm)
Steering flow 6.6 gpm (25 lpm)
Total flow 14.5 gpm (54.9 lpm)
