Caterpillar 416B

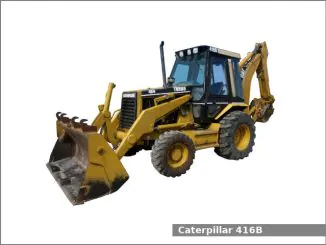

Caterpillar 416BThe Caterpillar 416B is a 2WD or 4WD backhoe loader tractor manufactured by Caterpillar from 1992 to 1996. The Caterpillar 416B is equipped with a 4.0 L (243.0 cu·in) four-cylinder diesel engine and a power shuttle transmission with 4 forward and 4 reverse gears.

The Caterpillar 416B backhoe loader tractor used the Caterpillar 3054 engine. It is a 4.0 L, 3,982 cm2, (243.0 cu·in) four-cylinder natural aspirated diesel engine with 100.0 mm (3.94 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 16.0:1. This engine produced 77.8 PS (57.2 kW; 76.7 HP) at 2,200 rpm of output power.

The Caterpillar 416B is equipped with hydrostatic power steering, wet disc brakes, ROPS canopy or cab (optional) and 106.0 liters (28 US gal.; 23.3 Imp. gal) fuel tank.

Caterpillar 416B Specifications

General Specifications
ModelCaterpillar 416B
Length6,838 mm (269.2 in)
Width2,262 mm (89.1 in)
Height (cab)2,720 mm (107.1 in)
Wheel base 2WD: 2,100 mm (82.7 in)
4WD: 2,067 mm (81.4 in)
Ground clearance297 mm (11.7 in)
Weight–
Fuel tank capacity106.0 liters (28 US gal.; 23.3 Imp. gal)
Battery12V, CCA 700A
Cabin typeROPS canopy or cab (optional)
Engine
Engine modelCaterpillar 3054
Engine typeFour-stroke, liquid-cooled, inline
Cylinders4
Fuel typeDiesel
Displacement4.0 L, 3,982 cm2, (243.0 cu·in)
Bore and stroke100.0 mm X 127.0 mm (3.94 in X 5 in)
Compression ratio16.0:1
Horsepower77.8 PS (57.2 kW; 76.7 HP) at 2,200 rpm
StarterElectric
Oil capacity:8.0 L (8.5 US. qt, 7 Imp. qt.)
Coolant capacity:21.0 L (22.2 US. qt, 18.5 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typeHydrostatic power
BrakesWet disc
Transmission model–
Transmission typePower shuttle
Gears4 forward and 4 reverse
Speed Forward: 32.4 kmh (20.1 mph) Reverse: 32.6 kmh (20.3 mph)
Transmission oil capacity10.0 L (2.6 US. gal, 2.2 Imp. gal.)
Tires
Front tires Ag: 11L-16 (2WD), 10.5-20 (4WD)
Rear tires Ag: 16.9-24 (2WD), 19.5L-24 (4WD)
Hydraulic system
Hydraulic typeClosed center
Hydraulic capacity79.0 L (20.9 US. gal, 17.4 Imp. gal.)
Pressure3000 psi (206.8 bar)
Pump flow41.0 gpm (155.2 lpm)
