Caterpillar 416E

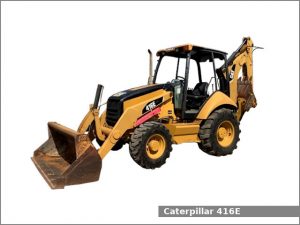

Caterpillar 416EThe Caterpillar 416E is a 2WD or 4WD backhoe loader tractor manufactured by Caterpillar from 2006. The Caterpillar 416E is equipped with a 4.4 L (268.0 cu·in) four-cylinder diesel engine and a power shuttle transmission with 4 forward and 4 reverse gears.

The Cat 416E backhoe loader tractor used the Caterpillar 3054C engine. It is a 4.4 L, 4,392 cm2, (268.0 cu·in) four-cylinder natural aspirated diesel engine with 105.0 mm (4.13 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 75.1 PS (55.2 kW; 74.0 HP) at 2,200 rpm of output power and 297.0 N·m (30.3 kg·m, 218.9 ft·lb) at 1,400 rpm of torque.

The Caterpillar 416E is equipped with hydrostatic power steering, wet disc brakes, ROPS canopy or Cab (optional) with heat and A/C and 143.8 liters (38 US gal.; 31.6 Imp. gal) fuel tank.

Caterpillar 416E Specifications

General Specifications
Model Caterpillar 416E
Length 7,230 mm (284.6 in)
Width 2,310 mm (90.9 in)
Height (cab) 2,810 mm (110.6 in)
Wheelbase 2,200 mm (86.6 in)
Ground clearance 330 mm (13 in)
Weight (operating) 6,795 kg (14,980 lbs)
Fuel tank capacity 143.8 liters (38 US gal.; 31.6 Imp. gal)
Battery 12V
Cabin type ROPS canopy or Cab (optional) with heat and A/C
Engine
Engine model Caterpillar 3054C
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.4 L, 4,392 cm2, (268.0 cu·in)
Bore and stroke 105.0 mm X 127.0 mm (4.13 in X 5 in)
Horsepower 75.1 PS (55.2 kW; 74.0 HP) at 2,200 rpm
Torque 297.0 N·m (30.3 kg·m, 218.9 ft·lb) at 1,400 rpm
Starter Electric
Oil capacity: 6.5 L (6.9 US. qt, 5.7 Imp. qt.)
Coolant capacity: 14.4 L (15.2 US. qt, 12.7 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD (optional)
Steering type Hydrostatic power
Brakes Wet disc
Transmission model
Transmission type Power shuttle
Gears 4 forward and 4 reverse
Speed Forward: 39.9 kmh (24.8 mph) Reverse: 39.9 kmh (24.8 mph)
Transmission oil capacity 18.5 L (4.9 US. gal, 4.1 Imp. gal.)
Tires
Front tires Industrial: 12.5/80-18
Rear tires Industrial: 19.5L-24
Hydraulic system
Hydraulic type Closed center load sensing (CCLS)
Hydraulic capacity 79.5 L (21 US. gal, 17.5 Imp. gal.)
Pressure Loader: 3000 psi (206.8 bar)
Backhoe: 3300 psi (227.5 bar)
Total flow 34.8 gpm (131.7 lpm)
