Cub Cadet RZT L54 KW

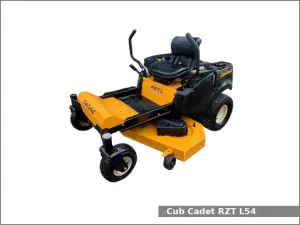

Cub Cadet RZT L54 KWThe Cub Cadet RZT L54 KW is a 2WD zero-turn mower from the series. This tractor has been manufactured by Cub Cadet (a part of MTD) from 2013. The Cub Cadet RZT L54 KW is equipped with a 0.7 L (44.3 cu·in) two-cylinder gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet RZT L54 KW zero-turn mower used the Kawasaki FR691V engine. It is a 0.7 L, 726 cm2, (44.3 cu·in) two-cylinder natural aspirated gasoline engine with 78.0 mm (3.07 in) of the cylinder bore and 76.0 mm (2.99 in) of the piston stroke. This engine produced 23.4 PS (17.2 kW; 23.0 HP) at 3,600 rpm of output power.

The Cub Cadet RZT L54 KW is equipped with differential power steering, open operator station, 10.6 liters (2.8 US gal.; 2.3 Imp. gal) fuel tank and mid-mount Cub Cadet 54 inches (1,370 mm) mower deck with 3-blade.

Cub Cadet RZT L54 KW Specifications

General Specifications
Model Cub Cadet RZT L54 KW
Length 2,030 mm (79.9 in)
Width
Height 910 mm (35.8 in)
Wheel base 1,100 mm (43.3 in)
Weight 276 kg (608 lbs)
Fuel tank capacity 10.6 liters (2.8 US gal.; 2.3 Imp. gal)
Battery 12V, CCA 230A
Cabin type Open operator station
Engine
Engine model Kawasaki FR691V
Engine type Four-stroke, air-cooled, V-twin
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 726 cm2, (44.3 cu·in)
Bore and stroke 78.0 mm X 76.0 mm (3.07 in X 2.99 in)
Horsepower 23.4 PS (17.2 kW; 23.0 HP) at 3,600 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD
Steering type Differential power
Brakes
Transmission model Hydro-Gear EZT-2200
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 11.3 kmh (7 mph) Reverse: 4.8 kmh (3 mph)
Tires
Front tires Ag: 13×5-6
Rear tires Ag: 18×9.5-8
PTO (Power take-off shaft)
Middle PTO type Independent with electric clutch
Middle PTO speed
