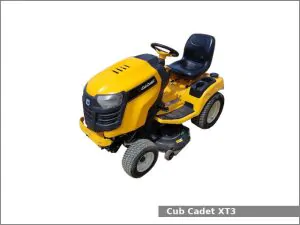

Cub Cadet XT3 GS

Cub Cadet XT3 GSThe Cub Cadet XT3 GS is a 2WD garden tractor from the XT3 Enduro series. This tractor has been manufactured by Cub Cadet (a part of MTD) from 2015. The Cub Cadet XT3 GS is equipped with a 0.7 L (41.1 cu·in) V-twin gasoline engine and a shaft-driven hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet XT3 GS garden tractor used the Kohler CH680 engine. It is a 0.7 L, 673 cm2, (41.1 cu·in) V-twin natural aspirated gasoline engine with 81.0 mm (3.19 in) of the cylinder bore and 66.0 mm (2.6 in) of the piston stroke. This engine produced 22.8 PS (16.8 kW; 22.5 HP) of output power.

The Cub Cadet XT3 GS is equipped with manual steering, disc brakes, an open operator station, and 12.5 liters (3.3 US gal.; 2.7 Imp. gal) fuel tank.

Following attachments are available for the Cub Cadet XT3 GS garden tractor:

  • Mid-mount Cub Cadet 42 in (1,060 mm) mower deck with 2-blade and manual with spring-assist lift
  • Front-mount Cub Cadet 46 in (1,160 mm) blade
  • Front-mount Cub Cadet 42 in (1,060 mm) three-stage snowblower

Cub Cadet XT3 GS Specifications

General Specifications
Model Cub Cadet XT3 GS
Length
Width
Height
Wheel base 1,280 mm (50.4 in)
Weight 362 kg (798 lbs)
Fuel tank capacity 12.5 liters (3.3 US gal.; 2.7 Imp. gal)
Battery 12V, CCA 300A
Cabin type Open operator station
Engine
Engine model Kohler CH680
Engine type Four-stroke, air-cooled, V-twin
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 673 cm2, (41.1 cu·in)
Bore and stroke 81.0 mm X 66.0 mm (3.19 in X 2.6 in)
Horsepower 22.8 PS (16.8 kW; 22.5 HP)
Starter Electric
Oil capacity: 1.8 L (1.9 US. qt, 1.6 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Disc
Transmission model Hydro-Gear BDU-10
Transmission type Shaft-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 10.5 kmh (6.5 mph) Reverse: 5.6 kmh (3.5 mph)
Tires
Front tires Lawn/turf: 16×6.5
Rear tires Lawn/turf: 23×10.5
PTO (Power take-off shaft)
Front PTO type Independent with electric clutch
Front PTO speed
