Cub Cadet 1020

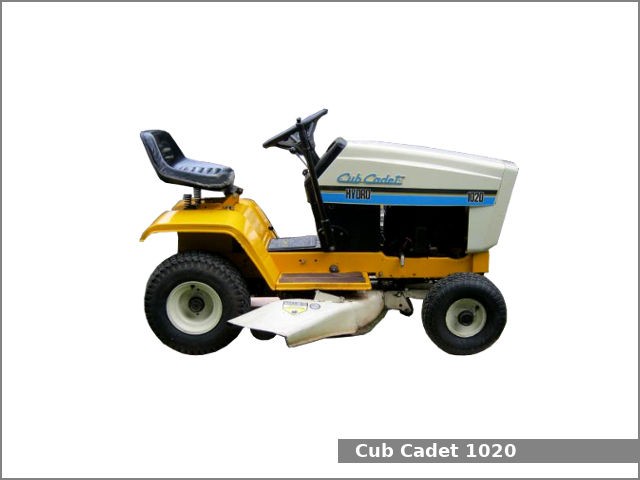

Cub Cadet 1020The Cub Cadet 1020 is a 2WD lawn tractor manufactured by the Cub Cadet (a part of MTD) from 1988 to 1991. The Cub Cadet 1020 is equipped with 399 cm2 single-cylinder gasoline engine and hydrostatic type transmission with infinite forward and reverse gears.

The Cub Cadet 1020 lawn tractor used 0.4 L, 399 cm2, (24.35 cu·in) single-cylinder air-cooled Briggs & Stratton gasoline engine with 87.0 mm (3.43 in) of cylinder bore and 67.0 mm (2.64 in) of piston stroke. This engine produced 10.2 PS (7.5 kW; 10.0 HP) of maximum output power.

The Cub Cadet 1020 is equipped with manual sector-and-pinion steering, mechanical disc brakes, open operator station and 11.4 liters (3 US gal.; 2.5 Imp. gal) fuel tank. This lawn tractor used 32 in (810 mm) mid-mount Cub Cadet two-blade mower deck with manual lift.

Cub Cadet 1020 Specifications

General Specifications
Model Cub Cadet 1020
Length 1,730 mm (68.1 in)
Width
Height
Wheel base 1,140 mm (44.9 in)
Weight 184 kg (405.7 lbs)
Fuel tank capacity 11.4 liters (3 US gal.; 2.5 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine
Engine model Briggs & Stratton
Engine type Four-stroke, air-cooled, inline
Cylinders 1
Fuel type Gasoline
Displacement 0.4 L, 399 cm2, (24.35 cu·in)
Bore and stroke 87.0 mm X 67.0 mm (3.43 in X 2.64 in)
Horsepower 10.2 PS (7.5 kW; 10.0 HP)
Starter Electric
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual sector-and-pinion
Brakes Mechanical disc
Transmission model
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 8.8 kmh (5.5 mph) Reverse: 4.8 (3 mph)
Tires
Front tires Lawn/turft: 15×6-6
Rear tires Lawn/turf: 18×8.5-8
PTO (Power take-off shaft)
Rear PTO type Independent with mechanical clutch
Rear PTO spped
