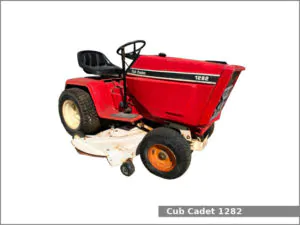

Cub Cadet 1282

Cub Cadet 1282The Cub Cadet 1282 is a 2WD lawn and garden tractor from the CCC 82 series. This tractor was manufactured by Cub Cadet (a part of MTD) from 1982 to 1985. The Cub Cadet 1282 is equipped with a 0.5 L (29.0 cu·in) single-cylinder gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet 1282 garden tractor used the Kohler K301 engine. It is a 0.5 L, 476 cm2, (29.0 cu·in) single-cylinder natural aspirated gasoline engine with 86.0 mm (3.39 in) of the cylinder bore and 83.0 mm (3.27 in) of the piston stroke. This engine produced 12.1 PS (8.9 kW; 12.0 HP) at 2,200 rpm of output power and 29.8 N·m (3 kg·m, 22 ft·lb) at 2,100 rpm.

The Cub Cadet 1282 is equipped with manual steering, wet disc brakes, open operator station, and 15.0 liters (4 US gal.; 3.3 Imp. gal) fuel tank.

Following attachments are available for the Cub Cadet 1282 garden tractor:

  • Cub Cadet 960 mm (38 in) mower deck with manual lift
  • Cub Cadet 1,110 mm (44 in) mower deck with manual lift
  • Cub Cadet 1,270 mm (50 in) mower deck with manual lift

Cub Cadet 1282 Specifications

General Specifications
ModelCub Cadet 1282
Length1,820 mm (71.7 in)
Width950 mm (37.4 in)
Height1,090 mm (42.9 in)
Wheel base1,110 mm (43.7 in)
Ground clearance150 mm (5.9 in)
Weight298 kg (657 lbs)
Fuel tank capacity15.0 liters (4 US gal.; 3.3 Imp. gal)
Battery12V, CCA 200A, 32Ah
Cabin typeOpen operator station
Engine modelKohler K301
Engine typeFour-stroke, air-cooled, inline
Fuel typeGasoline
Displacement0.5 L, 476 cm2, (29.0 cu·in)
Bore and stroke86.0 mm X 83.0 mm (3.39 in X 3.27 in)
Horsepower12.1 PS (8.9 kW; 11.9 HP) at 2,200 rpm
Torque29.8 N·m (3 kg·m, 22 ft·lb) at 2,100 rpm
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
BrakesWet disc
Transmission modelSundstrand
Transmission typeHydrostatic
GearsInfinite forward and reverse
SpeedForward: 12.9 kmh (8 mph) Reverse: 6.4 (4 mph)
Front tiresLawn/turf: 16×16.50-8
Rear tiresLawn/turf: 23×10.50-12
Three-Point Hitch
Caterogy0 (optional)
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Front PTO typeIndependent with electric clutch
Front PTO speed
