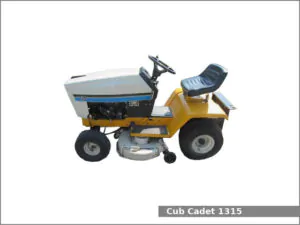

Cub Cadet 1315

Cub Cadet 1315The Cub Cadet 1315 is a 2WD lawn tractor manufactured by Cub Cadet (a part of MTD) from 1989 to 1991. The Cub Cadet 1315 is equipped with a 0.4 L (24.3 cu·in) single-cylinder gasoline engine and a gear type transmission with 5 forward and 1 reverse gears.

The Cub Cadet 1315 lawn tractor used the Kohler Command CV12.5 engine. It is a 0.4 L, 398 cm2, (24.3 cu·in) single-cylinder natural aspirated gasoline engine with 87.0 mm (3.43 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. This engine produced 12.6 PS (9.3 kW; 12.5 HP) at 3,600 rpm of output power.

The Cub Cadet 1315 is equipped with manual steering, dry disc brakes, an open operator station, and 11.4 liters (3 US gal.; 2.5 Imp. gal) fuel tank.

Cub Cadet 1315 Specifications

General Specifications
Model Cub Cadet 1315
Length 1,730 mm (68.1 in)
Width
Height
Wheel base 1,140 mm (44.9 in)
Weight 447 kg (985 lbs)
Fuel tank capacity 11.4 liters (3 US gal.; 2.5 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine
Engine model Kohler Command CV12.5
Engine type Four-stroke, air-cooled
Cylinders 1
Fuel type Gasoline
Displacement 0.4 L, 398 cm2, (24.3 cu·in)
Bore and stroke 87.0 mm X 67.0 mm (3.43 in X 2.64 in)
Horsepower 12.6 PS (9.3 kW; 12.5 HP) at 3,300 rpm
Starter Electric
Oil type 5W-20. 10W-30
Oil capacity: 1.9 L (2 US. qt, 1.7 Imp. qt.)
Spark plug Champion RC12YC
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Dry disc
Transmission model
Transmission type Gear type
Gears 5 forward and 1 reverse
Speed Forward: 8.8 kmh (5.5 mph) Reverse: 3.8 kmh (2.4 mph)
Tires
Front tires Lawn/turf: 15x6x6
Rear tires Lawn/turf: 18×8.5×8
PTO (Power take-off shaft)
Front PTO type Independent with mechanical clutch
Front PTO speed
