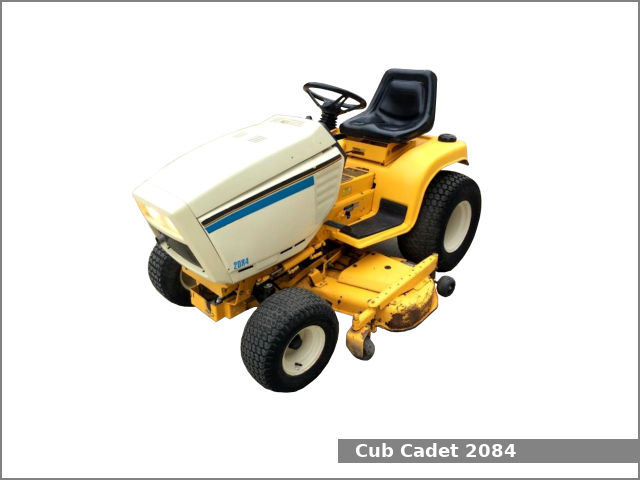

The Cub Cadet 2084 is a 2WD garden tractor manufactured by Cub Cadet (a part of MTD) from 1993 to 1994. The Cub Cadet 2084 is equipped with a 0.6 L (38.1 cu·in) two-cylinder gasoline engine and a shaft-driven hydrostatic transmission with infinite forward and reverse gears.
The Cub Cadet 2084 garden tractor used the Kohler CH20 engine. It is a 0.6 L, 624 cm2, (38.1 cu·in) two-cylinder natural aspirated gasoline engine with 77.0 mm (3.03 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. This engine produced 20.3 PS (14.9 kW; 20.0 HP) of output power.
The Cub Cadet 2084 is equipped with power steering, disc brakes, an open operator station, and 18.9 liters (5 US gal.; 4.2 Imp. gal) fuel tank.
Following attachments are available for the Cub Cadet 2084 garden tractor:
- Mid-mount Cub Cadet 1,160 mm (46 in) mower deck with 3-blades and hydraulic lift
- Mid-mount Cub Cadet 1,210 mm (48 in) mower deck with 3-blades and hydraulic lift
- Mid-mount Cub Cadet 1,370 mm (54 in) mower deck with 3-blades and hydraulic lift
- Mid-mount Cub Cadet 1,520 mm (60 in) mower deck with 3-blades and hydraulic lift
- Front-mount Cub Cadet 1,370 mm (54 in) blade
- Front-mount Cub Cadet 1,140 mm (45 in) two-stage snowblower
Cub Cadet 2084 Specifications
| General Specifications | |
| Model | Cub Cadet 2084 |
| Length | 1,990 mm (78.3 in) |
| Width | 1,100 mm (43.3 in) |
| Height (steering wheel) | 1,200 mm (47.2 in) |
| Wheel base | 1,310 mm (51.6 in) |
| Weight | 470 kg (1,036 lbs) |
| Fuel tank capacity | 18.9 liters (5 US gal.; 4.2 Imp. gal) |
| Battery | 12V |
| Cabin type | Open operator station |
| Engine | |
| Engine model | Kohler CH20 |
| Engine type | Four-stroke, air-cooled, V-twin |
| Cylinders | 2 |
| Fuel type | Gasoline |
| Displacement | 0.6 L, 624 cm2, (38.1 cu·in) |
| Bore and stroke | 77.0 mm X 67.0 mm (3.03 in X 2.64 in) |
| Horsepower | 20.3 PS (14.9 kW; 20.0 HP) |
| Starter | Electric |
| Oil capacity: | 1.8 L (1.9 US. qt, 1.6 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Power |
| Brakes | Disc |
| Transmission model | – |
| Transmission type | Shaft-driven hydrostatic |
| Gears | Infinite forward and reverse |
| Speed | Forward: 12.1 kmh (7.5 mph) Reverse: 6.4 kmh (4.0 mph) |
| Tires | |
| Front tires | Lawn/turf: 18×8.5-8 |
| Rear tires | Lawn/turf: 26×12.0-12 |
| Three-Point Hitch | |
| Category | 0 |
| Control type | – |
| Lift capacity (at ends) | – |
| PTO (Power take-off shaft) | |
| Front PTO type | Independent with electric clutch |
| Front PTO speed | – |
