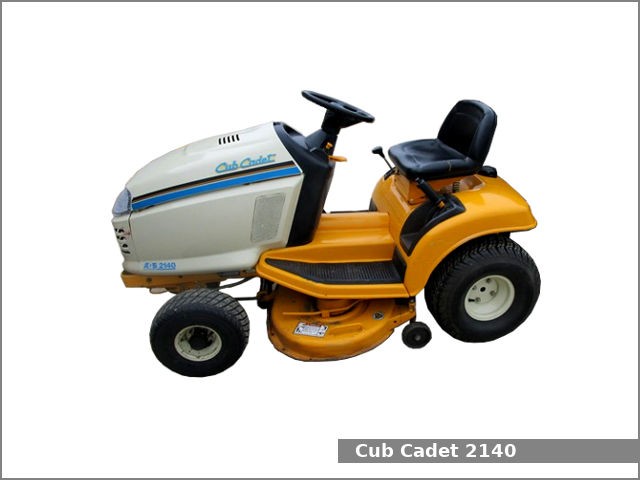

Cub Cadet AGS 2140

Cub Cadet AGS 2140The Cub Cadet AGS 2140 is a 2WD lawn tractor from the 2000 series. This tractor was manufactured by the Cub Cadet (a part of MTD) from 1994 to 1995. The Cub Cadet AGS 2140 is equipped with a 0.4 L single-cylinder gasoline engine and shaft-driven gear type transmission with 6 forward and reverse gears.

The Cub Cadet AGS 2140 lawn tractor used the Onan Elite engine. It is a 0.4 L, 388 cm2, (23.7 cu·in) single-cylinder natural aspirated gasoline engine with 84.0 mm (3.31 in) of the cylinder bore and 70.0 mm (2.76 in) of the piston stroke. This engine produced 14.1 PS (10.4 kW; 14.0 HP) at 3,600 rpm of maximum output power.

The Cub Cadet AGS 2140 is equipped with manual steering, internal expanding brakes, open operator station, 11.4 liters (3 US gal.; 2.5 Imp. gal) fuel tank and mid-mount 42 in (1,060 mm) mower deck with 2-blades.

Cub Cadet AGS 2140 Specifications

General Specifications
Model Cub Cadet AGS 2140
Length 1,820 mm (71.7 in)
Width 1,290 mm (50.8 in)
Height 1,060 mm (41.7 in)
Wheel base 1,190 mm (46.9 in)
Fuel tank capacity 11.4 liters (3 US gal.; 2.5 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine model Onan Elite
Engine type Four-stroke, air-cooled, inline
Cylinders 1
Fuel type Gasoline
Displacement 0.4 L, 388 cm2, (23.7 cu·in)
Bore and stroke 84.0 mm X 70.0 mm (3.31 in X 2.76 in)
Horsepower 14.1 PS (10.4 kW; 14.0 HP) at 3,600 rpm
Starter Electric
Oil capacity: 0.9 L (0.95 US. qt, 0.79 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Internal expanding
Transmission model Auto Gear System
Transmission type Shaft-driven gear type
Gears 6 forward and reverse
Transmission oil capacity 5.7 L (6.02 US. qt, 5.02 Imp. qt.)
Front tires Lawn/turf: 15×6-6
Rear tires Lawn/turf: 20×9-8
PTO (Power take-off shaft)
Front PTO type Independent with electric clutch
Front PTO spped -/td>
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
