Cub Cadet RZT54 KW

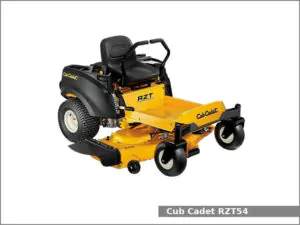

Cub Cadet RZT54 KWThe Cub Cadet RZT 54 KW is a 2WD zero-turn mower from the RZT series. This tractor was manufactured by Cub Cadet (a part of MTD) from 2007 to 2012.

The Cub Cadet RZT 54 KW is equipped with one of two engines: a 0.7 L (41.2 cu·in) two-cylinder gasoline engine (from 2007 to 2010) or a 0.7 L (44.3 cu·in) two-cylinder gasoline engine (from 2011 to 2012) and a hydrostatic transmission Hydro-Gear ZT-2800 (2007-2010) or Hydro-Gear EZT (from 2011 to 2012) with infinite forward and reverse gears.

The tractor could be equipped with the following engines:

  • Kawasaki FH721V (2007-2010). It is a 0.7 L, 675 cm2, (41.2 cu·in) V-twin natural aspirated gasoline engine with 72.5 mm (2.85 in) of the cylinder bore and 76.0 mm (2.99 in) of the piston stroke. The compression ratio rating is 8.1:1. This engine produced 25.3 PS (18.6 kW; 25.0 HP) at 3,600 rpm of output power.
  • Kawasaki FR691V (2011-2012). It is a 0.7 L, 726 cm2, (44.3 cu·in) V-twin natural aspirated gasoline engine. The cylinder bore is 78.0 mm (3.07 in) and the piston stroke is 76.0 mm (2.99 in). The compression ratio rating is 8.2:1. This engine produced 23.4 PS (17.2 kW; 23.0 HP) at 3,600 rpm of output power.

The Cub Cadet RZT54 KW is equipped with power or differential power steering, an open operator station, 10.6 liters (2.8 US gal.; 2.3 Imp. gal) fuel tank, and mid-mount Cub Cadet 1,370 mm (54 in) mower deck with 3-blades.

Cub Cadet RZT 54 KW Specifications

General Specifications
ModelCub Cadet RZT54 KW
Length 2007-2010: 1,700 mm (66.9 in)
2011-2012: 2,030 mm (80.0 in)
Width
Height910 mm (36.0 in)
Wheel base1,100 mm (43.3 in)
Weight 2007-2010: 252 kg (556 lbs)
2011-2012: 276 kg (610 lbs)
Fuel tank capacity10.6 liters (2.8 US gal.; 2.3 Imp. gal)
Battery12V
Cabin typeOpen operator station
Engine
Engine modelKawasaki FH721V (2007-2010)
Engine typeFour-stroke, air-cooled, V
Cylinders2
Fuel typeGasoline
Displacement0.7 L, 675 cm2, (41.2 cu·in)
Bore and stroke72.5 mm X 76.0 mm (2.85 in X 2.99 in)
Compression ratio8.1:1
Horsepower25.3 PS (18.6 kW; 25.0 HP) at 3,600 rpm
StarterElectric
Oil typeSAE 10W-40 10W-30, 5W-20
Oil capacity:1.9 L (2 US. qt, 1.7 Imp. qt.)
Spark plugNGK BPR4ES
Engine
Engine modelKawasaki FR691V (2011-2012)
Engine typeFour-stroke, air-cooled, V
Cylinders2
Fuel typeGasoline
Displacement0.7 L, 726 cm2, (44.3 cu·in)
Bore and stroke78.0 mm X 76.0 mm (3.07 in X 2.99 in)
Compression ratio8.2:1
Horsepower23.4 PS (17.2 kW; 23.0 HP) at 3,600 rpm
StarterElectric
Oil typeSAE 10W-40, 10W-30
Oil capacity:1.7 L (1.8 US. qt, 1.5 Imp. qt.)
Spark plugNGK BPR4ES
Transmission and chassis
Chassis4×2 2WD
Steering typePower or differential power
Brakes
Transmission modelHydro-Gear ZT-2800 (2007-2010)
Transmission typeHydrostatic
GearsInfinite forward and reverse
Speed Forward: 10.5 kmh (6.5 mph) Reverse: 4.8 kmh (3 mph)
Transmission modelHydro-Gear EZT (2011-2012)
Transmission typeHydrostatic
GearsInfinite forward and reverse
Speed Forward: 11.3 kmh (7 mph) Reverse: 6.4 kmh (4 mph)
Tires
Front tires Lawn/turf: 2007-2010: 13×5.0-6, 2011-2012: 13×5.0-6
Rear tires Lawn/turf: 2007-2010: 20×10-8, 2011-2012: 18×9.5-8
PTO (Power take-off shaft)
Middle PTO typeIndependent with electric clutch
Middle PTO speed
