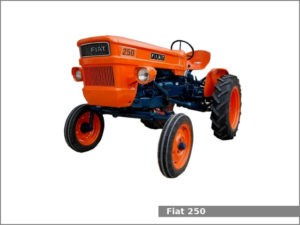

The Fiat 250 is a 2WD or 4WD tractor manufactured by Fiat from 1968 to 1974. The Fiat 250 is equipped with a 1.6 L (95.2 cu·in) two-cylinder diesel engine and a gear type transmission with 6 forward and 2 reverse gears.
The Fiat 250 tractor used the Fiat 852 engine. It is a 1.6 L, 1,560 cm2, (95.2 cu·in) two-cylinder natural aspirated diesel engine with 95.0 mm (3.74 in) of the cylinder bore and 11.0 mm (0.43 in) of the piston stroke. This engine produced 25.3 PS (18.6 kW; 25.0 HP) at 2,250 rpm of output power.
The Fiat 250 is equipped with manual steering and an open operator station.
Fiat 250 Specifications
| General Specifications | |
| Model | Fiat 250 |
| Length | 2,940 mm (115.7 in) |
| Width | 1,490 mm (58.7 in) |
| Height (hood) | 1,340 mm (52.8 in) |
| Wheel base | 1,690 mm (66.5 in) |
| Weight |
2WD: 1,220 kg (2,690 lbs) 4WD: 1,395 kg (3,075 lbs) |
| Fuel tank capacity | – |
| Battery | 12V |
| Cabin type | Open operator station |
| Engine | |
| Engine model | Fiat 852 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 2 |
| Fuel type | Diesel |
| Displacement | 1.6 L, 1,560 cm2, (95.2 cu·in) |
| Bore and stroke | 95.0 mm X 11.0 mm (3.74 in X 0.43 in) |
| Horsepower | 25.3 PS (18.6 kW; 25.0 HP) at 2,250 rpm |
| Starter | Electric |
| Transmission and chassis | |
| Chassis | 4×2 2WD or 4×4 MFWD 4WD |
| Steering type | Manual |
| Brakes | – |
| Transmission model | – |
| Transmission type | Gear type |
| Gears | 6 forward and 2 reverse |
| Speed | Forward: 25.5 kmh (15.8 mph) Reverse: 14.0 (8.7 mph) |
| Tires | |
| Front tires | Ag: 5.00-15 (2WD), 7.50-16 (4WD) |
| Rear tires | Ag: 10-24 |
| Three-Point Hitch | |
| Caterogy | I |
| Control type | – |
| Lift capacity (at ends) | 770 kg (1698 lbs) |
| PTO (Power take-off shaft) | |
| Rear PTO type | – |
| Rear PTO speed | 540 rpm |
| Hydraulic system | |
| Hydraulic type | – |
| Pump flow | 2.5 gpm (9.5 lpm) |
