Ford 1110

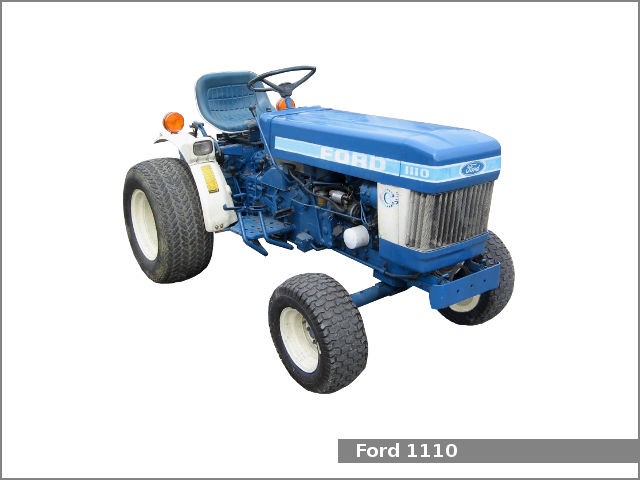

Ford 1110The Ford 1110 is a two-wheel (2WD) or optional four-wheel (4WD) compact utility tractor from the Ten compact series, manufactured by Japanese company Shibaura for Ford brand from 1983 to 1986. The Ford 1110 tractor is equipped with two-cylinders Shibaura LEK757C diesel engine with 0.7 L, 706 cc (43.1 cu-in) of displacement and gear shift transmission with 10 forward and 2 reverse gears. The hydrostatic transmission was available as an option.

The Ford 1110 tractor used a two-cylinder naturally-aspirated liquid-cooled diesel engine Shibaura LEK757C, with 75.0 mm (2.95 in) of the cylinder bore and 80.0 mm (3.15 in) of the piston stroke. Compression ratio rating is 23.0:1. It produced 13.2 PS (9.7 kW; 13.0 HP) of gross horsepower and 11.7 PS (8.6 kW; 11.5 HP) of PTO shaft horsepower. The engine used dry air cleaner and pre-heating glow plugs.

This utility tractor is equipped with gear shift transmission with 10 forward (1.1-15.8 km/h, 0.7-9.8 mph) and 2 reverse (1.9-8.6 km/h, 1.2-5.4 mph) gears. The tractor used manual steering, differential mechanical drum brakes.

The 1110 tractor can use the following attachments:

  • Mid-mount Ford 916A mower deck with 3-blades (cutting width: 1,220 mm (48 in.)
  • Mid-mount Ford 916A mower deck with 3-blades (cutting width: 1,520 mm (60 in.)
  • Rear-mount Ford 930A mower deck with 3-blades and hydraulic lift (cutting width: 1,220 mm (48 in.)
  • Rear-mount Ford 715 snow blower with hydraulic lift (clearing width: 1,520 mm (60 in.)
  • Front-end loader Ford 768A/B
  • Backhoe Ford 757A

The Ford 1110 used a rollover protection structure (ROPS) for operators. The tractor has rear PTO shaft with 540 rpm, mid and front PTO was available as an option.

Ford 1110 specifications

General Specifications
ModelFord 1110
Length
Width
Height
Wheelbase1,390 mm (55.1 in.)
Ground clearance
Weight581 kg (1,283 lb.)
Fuel tank capacity18.0 L (4.8 US gal.)
Battery12V 70A
Engine
Engine modelShibaura LEK757C
Number of Cylinders2
Firing order2-1
FuelDiesel
Displacement0.7 L, 706 cc (43.1 cu.in.)
Bore x stroke75.0 x 80.0 mm (2.95 x 3.15 in)
Power output Gross: 13.2 PS (9.7 kW; 13.0 HP)
PTO: 11.7 PS (8.6 kW; 11.5 HP)
Torque
Starter typeElectric starter
Oil type
Governed Speeds Low Idle: 750-850 rpm;
High Idle: 2,750-2,800 rpm; (no load)
Rated: 2,600 rpm (full load)
Oil capacity3.3 L (3.5 U.S. qt)
Coolant capacity2.5 L (2.6 U.S. qt)
Injection Timing, B.T.D.C.20°-21°
Valve clearance Intake: 0.20 mm (0.008 in.)
Exhaust: 0.20 mm (0.008 in.)
Tires size
Front tires Ag (2WD): 4.00-12
Ag (4WD): 5.00-12
Turf / Lawn: 20×8.00-10
Rear tires Ag: 8.00-16
Turf: 29×12.00-15
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD (opton)
SteeringManual
Transmission typeGear shift
Gears10 forward and 2 reverse
Ground speed Forward: up to 15.8 km/h (9.8 mph)
Reverse: up to 8.6 km/h (5.4 mph)
PTO (Power take-off shaft)
PTO Type: Rear, transmission
Middle (option)
Front (option)
PTO Speed: Rear: 540 rpm
Middle: 1000 rpm
Hydraulic lift
3-point linkage:Category I
Control system:
No. of remote valves:
Max lifting capacity (at link end):399 kg (881 lb.)
Hydraulic system
TypeLive
Total flow
Oil capacity (Standard Transmission, Rear Axle and Hydraulic System)17.0 L (18.0 US. qt.)
Oil capacity (Hydrostatsic Transmission, Rear Axle and Hydraulic System)15.5 L (16.4 US. qt.)
Front axle differential case1.5 L (1.6 U.S. qt.)
Front axle reduction case (Each)0.2 L (0.21 U.S. qt.)
