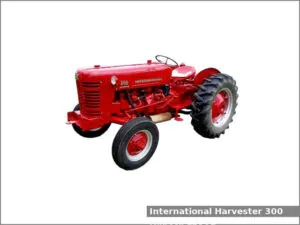

International Harvester 300

International Harvester 300The International Harvester 300 is a 2WD utility tractor manufactured by International Harvester from 1955 to 1956. The International Harvester 300 is equipped with a 2.8 L (169.0 cu·in) four-cylinder gasoline or LP gas engine and one of two transmissions: a sliding gear transmission with dry disc clutch and 5 forward and 1 reverse gear or a partial power shift transmission with dry disc clutch and 10 forward and 2 reverse gears.

The IH 300 utility tractor used the International Harvester C169 engine. It is a 2.8 L, 2,769 cm2, (169.0 cu·in) four-cylinder natural aspirated gasoline / LP gas engine with 90.0 mm (3.54 in) of the cylinder bore and 108.0 mm (4.25 in) of the piston stroke. The compression ratio rating is 6.6:1 for the gasoline version or 8.75:1 for the LP-gas version.

The International Harvester 300 is equipped with differential mechanical disc brakes, open operator station, and 42.6 liters (11.3 US gal.; 9.4 Imp. gal) fuel tank.

International Harvester 300 Specifications

General Specifications
ModelInternational Harvester 300
Length2,990 mm (117.7 in)
Width1,650 mm (65 in)
Height1,470 mm (57.9 in)
Wheel base1,900 mm (74.8 in)
Weight2,000 kg (4,409 lbs)
Fuel tank capacity42.6 liters (11.3 US gal.; 9.4 Imp. gal)
Battery6V (gasoline) or 12V (LP gas)
Cabin typeOpen operator station
Engine modelInternational Harvester C169
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeGasoline or LP gas
Displacement2.8 L, 2,769 cm2, (169.0 cu·in)
Bore and stroke90.0 mm X 108.0 mm (3.54 in X 4.25 in)
Compression ratio Gasoline: 6.6:1
LP-gas: 8.75:1
Coolant capacity:15.6 L (16.5 US. qt, 13.7 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering type
BrakesDifferential mechanical disc
Transmission model
Transmission typeSliding gear with dry disc clutch
Gears5 forward and 1 reverse
Speed Forward: 24.8 kmh (15.4 mph) Reverse: 4.8 (3 mph)
Transmission modelTorque Amplifier
Transmission typePartial power shift with dry disc clutch
Gears10 forward and 2 reverse
Speed Forward: 24.8 kmh (15.4 mph) Reverse: 4.8 (3 mph)
Front tiresAg: 5.50-16
Rear tiresAg: 10.00-28, 12.00-28
Rear Hitch
TypeIH Fast Hitch
PTO (Power take-off shaft)
Rear PTO typeTransmission or independent (with Torque Amplifier)
Rear PTO speed540 rpm
