International Harvester T-340

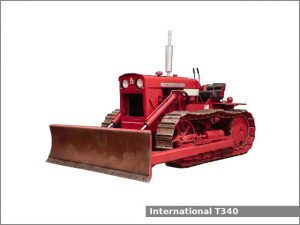

International Harvester T-340The International Harvester T-340 is an agricultural crawler manufactured by International Harvester from 1959 to 1965. The International T340 is equipped with a 2.2 L (134.8 cu·in) four-cylinder gasoline engine and a gear type with dry disc clutch transmission with 5 forward and 1 reverse gears.

The IH T-340 agricultural crawler used the International Harvester engine. It is a 2.2 L, 2,209 cm2, (134.8 cu·in) four-cylinder natural aspirated gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 103.0 mm (4.06 in) of the piston stroke. The compression ratio rating is 7.38:1. This engine produced 31.4 PS (23.1 kW; 31.0 HP) at 2,000 rpm of drawbar (claimed) output power.

International Harvester T-340 Specifications

General Specifications
Model International Harvester T-340
Length 3,170 mm (124.8 in)
Width 1,470 mm (57.9 in)
Height 1,470 mm (57.9 in)
Wheel base
Weight 2,720 kg (5,997 lbs)
Fuel tank capacity 56.8 liters (15 US gal.; 12.5 Imp. gal)
Battery
Cabin type Open operator station
Engine
Engine model International Harvester
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline
Displacement 2.2 L, 2,209 cm2, (134.8 cu·in)
Bore and stroke 83.0 mm X 103.0 mm (3.27 in X 4.06 in)
Compression ratio 7.38:1
Horsepower (Drawbar) 31.4 PS (23.1 kW; 31.0 HP) at 2,000 rpm
Starter Electric
Coolant capacity: 64.4 L (68.1 US. qt, 56.7 Imp. qt.)
Transmission and chassis
Chassis Crawler
Steering type
Brakes
Transmission model
Transmission type Gear type with dry disc clutch
Gears 5 forward and 1 reverse
Speed Forward: 9.3 kmh (5.8 mph) Reverse: 2.9 kmh (1.8 mph)
Tracks
Size
