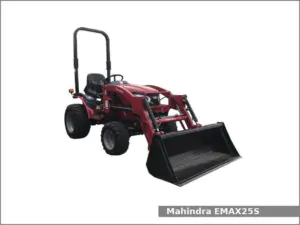

Mahindra eMax 25S

Mahindra eMax 25SThe Mahindra eMax 25S is a 4WD sub-compact utility tractor from the eMax S series. This tractor has beem manufactured by Mahindra since 2017. The Mahindra eMax 25S is equipped with a 1.0 L (61.5 cu·in) three-cylinder diesel engine and a hydrostatic transmission with infinite (2-range) forward and reverse gears.

The Mahindra eMax 25S sub-compact utility tractor used the Daedong 3C100LF-DY engine. It is a 1.0 L, 1,007 cm2, (61.5 cu·in) three-cylinder natural aspirated diesel engine with 75.0 mm (2.95 in) of the cylinder bore and 76.0 mm (2.99 in) of the piston stroke. The compression ratio rating is 21.0:1. This engine produced 25.3 PS (18.6 kW; 25.0 HP) at 3,000 rpm of output power.

The Mahindra eMax 25S is equipped with power steering, wet disc brakes, two-post folding ROPS or Cab with heater (optional), and 22.0 liters (5.8 US gal.; 4.8 Imp. gal) fuel tank.

Following attachments are available for the Mahindra eMax 25S sub-compact utility tractor:

  • Mid-mount Mahindra 25M 60 in (1,520 mm) mower deck with 3-blades
  • Mahindra eMax 25L-S loader
  • Mahindra eMax 26B backhoe

Mahindra eMax 25S Specifications

General Specifications
Model Mahindra eMax 25S
Length 2,550 mm (100.4 in)
Width 1,165 mm (45.9 in)
Height 2,320 mm (91.3 in)
Wheel base 1,460 mm (57.5 in)
Ground clearance 240 mm (9.4 in)
Weight 730 kg (1,609 lbs)
Fuel tank capacity 22.0 liters (5.8 US gal.; 4.8 Imp. gal)
Battery 12V, 50Ah
Cabin type Two-post folding ROPS or Cab with heater (optional)
Engine
Engine model Daedong 3C100LF-DY
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.0 L, 1,007 cm2, (61.5 cu·in)
Bore and stroke 75.0 mm X 76.0 mm (2.95 in X 2.99 in)
Compression ratio 21.0:1
Horsepower 25.3 PS (18.6 kW; 25.0 HP) at 3,000 rpm
Starter Electric
Oil type SAE 10W-30
Oil capacity: 3.8 L (4 US. qt, 3.3 Imp. qt.)
Coolant capacity: 3.5 L (3.7 US. qt, 3.1 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Differential lock Bevel gears with diff-Lock
Transmission model
Transmission type Hydrostatic
Gears Infinite (2-range) forward and reverse
Tires
Front tires Ag: 6×12
Rear tires Ag: 9.5×16
Three-Point Hitch
Caterogy IN
Control type
Lift capacity (at ends) 600 kg (1,323 lbs)
PTO (Power take-off shaft)
Middle PTO type
Middle PTO speed 2,000 rpm
Rear PTO type
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Valves 1
Pump flow 4.5 gpm (17 lpm)
Steering flow 2.6 gpm (9.8 lpm)
