Mahindra 2810

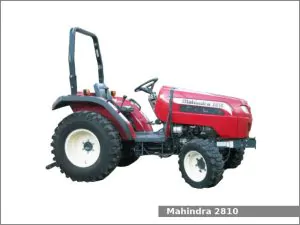

Mahindra 2810The Mahindra 2810 is a 4WD compact utility tractor from the 10 series. This tractor was manufactured by TYM for distributor Mahindra in South Korea from 2002 to 2006. The Mahindra 2810 is equipped with a 1.4 L (85.0 cu·in) three-cylinder diesel engine and one of two transmissions: a synchomesh shuttle transmission with 12 forward and 12 reverse gears or a hydrostatic transmission with infinite (3-range) forward and reverse gears.

The Mahindra 2810 compact utility tractor used the Daedong 3A139 engine. It is a 1.4 L, 1,393 cm2, (85.0 cu·in) three-cylinder natural aspirated diesel engine with 80.0 mm (3.15 in) of the cylinder bore and 92.4 mm (3.64 in) of the piston stroke. This engine produced 28.4 PS (20.9 kW; 28.0 HP) at 2,700 rpm of output power.

The Mahindra 2810 is equipped with hydrostatic power steering, wet disc brakes, open operator station and 33.0 liters (8.7 US gal.; 7.3 Imp. gal) fuel tank.

Mahindra 2810 Specifications

General Specifications
Model Mahindra 2810
Length 3,150 mm (124 in)
Width 1,315 mm (51.8 in)
Height 2,366 mm (93.1 in)
Wheel base 1,640 mm (64.6 in)
Ground clearance 325 mm (12.8 in)
Weight 1,389 kg (3,062 lbs)
Fuel tank capacity 33.0 liters (8.7 US gal.; 7.3 Imp. gal)
Battery 12V, 60Ah
Cabin type Open operator station
Engine
Engine model Daedong 3A139
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.4 L, 1,393 cm2, (85.0 cu·in)
Bore and stroke 80.0 mm X 92.4 mm (3.15 in X 3.64 in)
Horsepower 28.4 PS (20.9 kW; 28.0 HP) at 2,700 rpm
Starter Electric
Coolant capacity: 12.7 L (13.4 US. qt, 11.2 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc
Differential lock Bevel gears with diff-Lock
Transmission model
Transmission type Synchomesh shuttle
Gears 12 forward and 12 reverse
Transmission model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Tires
Front tires Ag: 7-16
Rear tires Ag: 11.2-24
Three-Point Hitch
Category I
Control type Position control
Lift capacity Gear: 941 kg (2,073 lbs)
Hydro: 943 kg (2,080 lbs)
PTO (Power take-off shaft)
Middle PTO type Independent (hydro only)
Middle PTO speed 2000 rpm
Rear PTO type Independent with electro-hydraulic clutch
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Pump flow Gear: 5.88 gpm (22.3 lpm)
Hydro: 6.3 gpm (23.8 lpm)
Steering flow Gear: 3.07 gpm (11.6 lpm)
Hydro: 4.55 gpm (17.2 lpm)
