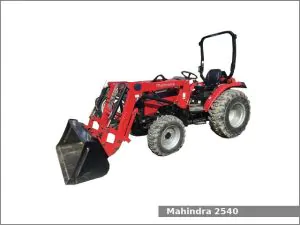

Mahindra 2540

Mahindra 2540The Mahindra 2540 is a 4WD compact utility tractor manufactured by TYM for distributor Mahindra since 2016. The Mahindra 2540 is equipped with a 2.7 L (166.7 cu·in) four-cylinder diesel engine and a shuttle transmission with 12 forward and 12 reverse gears.

The Mahindra 2540 compact utility tractor used the Mahindra engine. It is a 2.7 L, 2,732 cm2, (166.7 cu·in) four-cylinder natural aspirated diesel engine with 89.0 mm (3.5 in) of the cylinder bore and 100.0 mm (3.94 in) of the piston stroke. The compression ratio rating is 19.5:1. This engine produced 40.5 PS (29.8 kW; 40.0 HP) at 2,600 rpm of output power.

The Mahindra 2540 is equipped with power steering, wet disc brakes, Two-post foldable ROPS, and 60.6 liters (16 US gal.; 13.3 Imp. gal) fuel tank.

Following attachments are available for the Mahindra 2540 compact utility tractor:

  • Mahindra 2540L loader
  • Mahindra 2540B backhoe

Mahindra 2540 Specifications

General Specifications
Model Mahindra 2540
Length 3,030 mm (119.3 in)
Width 1,510 mm (59.4 in)
Height (ROPS) 2,390 mm (94.1 in)
Wheel base
Weight 1,490 kg (3,285 lbs)
Fuel tank capacity 60.6 liters (16 US gal.; 13.3 Imp. gal)
Battery 12V, 96Ah
Cabin type Two-post foldable ROPS
Engine
Engine model Mahindra
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 2.7 L, 2,732 cm2, (166.7 cu·in)
Bore and stroke 89.0 mm X 100.0 mm (3.5 in X 3.94 in)
Compression ratio 19.5:1
Horsepower 40.5 PS (29.8 kW; 40.0 HP) at 2,600 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Transmission model
Transmission type Shuttle with dry disc clutch
Gears 12 forward and 12 reverse
Tires
Front tires Ag: 8.3×16
Industrial: 10-16.5
Rear tires Ag: 12.4×24
Industrial: 43×16-20
Three-Point Hitch
Category I
Control type Position control
Lift capacity (at ends) 1,200 kg (2,645 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Valves 1 or 2
Pump flow 8.2 gpm (31 lpm)
Steering flow 4.5 gpm (17 lpm)
