Mahindra eMax 25

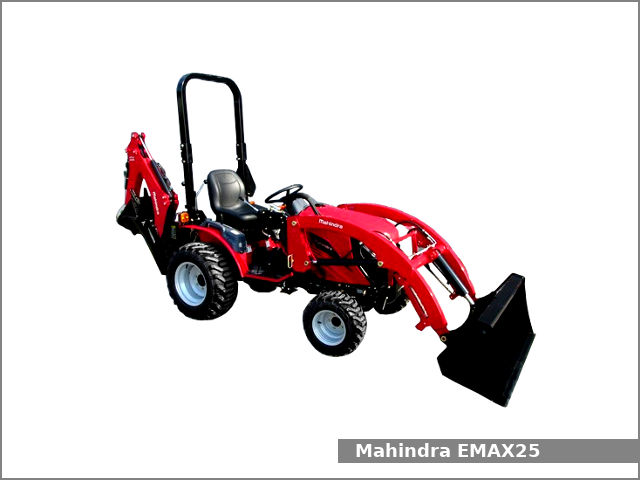

Mahindra eMax 25The Mahindra eMax 25 is a 4WD sub-compact utility tractor from the eMax series. This tractor was manufactured by Mahindra in from 2014 to 2016. The Mahindra eMax 25 is equipped with a 1.0 L (61.5 cu·in) three-cylinder diesel engine and a hydrostatic transmission with infinite forward and reverse gears.

The Mahindra eMax 25 sub-compact utility tractor used the Daedong 3C100 engine. It is a 1.0 L, 1,007 cm2, (61.5 cu·in) three-cylinder natural aspirated diesel engine with 75.0 mm (2.95 in) of the cylinder bore and 76.0 mm (2.99 in) of the piston stroke. The compression ratio rating is 22.0:1. This engine produced 24.3 PS (17.9 kW; 24.0 HP) at 3,000 rpm of output power.

The Mahindra eMax 25 is equipped with power steering, wet disc brakes, two-post foldable ROPS, and 23.0 liters (6.1 US gal.; 5.1 Imp. gal) fuel tank.

Following attachments are available for the Mahindra eMax 25 sub-compact utility tractor:

  • Mahindra eMax 25L loader
  • Mahindra eMax 25B backhoe

Mahindra eMax 25 Specifications

General Specifications
Model Mahindra eMax 25
Length 2,600 mm (102.4 in)
Width 1,190 mm (46.9 in)
Height
Wheel base
Weight 700 kg (1,543 lbs)
Fuel tank capacity 23.0 liters (6.1 US gal.; 5.1 Imp. gal)
Battery 12V
Cabin type Two-post foldable ROPS
Engine
Engine model Daedong 3C100
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.0 L, 1,007 cm2, (61.5 cu·in)
Bore and stroke 75.0 mm X 76.0 mm (2.95 in X 2.99 in)
Compression ratio 22.0:1
Horsepower 24.3 PS (17.9 kW; 24.0 HP) at 3,000 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Transmission model
Transmission type Hydrostatic
Gears Infinite forward and reverse
Tires
Front tires Ag: 6×12
Rear tires Ag: 9.5×16
Three-Point Hitch
Caterogy I
Control type
Lift capacity (at ends) 600 kg (1323 lbs)
PTO (Power take-off shaft)
Middle PTO type
Middle PTO speed 2,000 rpm
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Valves 1
Pump flow 4.5 gpm (17 lpm)
Steering flow 2.6 gpm (9.8 lpm)
