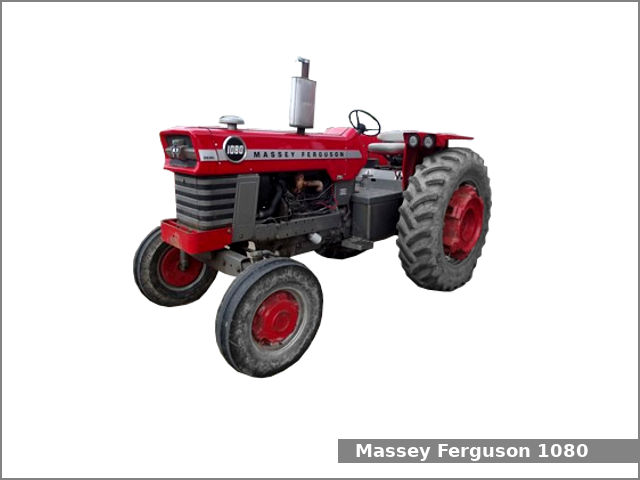

Massey Ferguson 1080

Massey Ferguson 1080The Massey Ferguson 1080 is a 2WD or 4WD standard-tread tractor manufactured by Massey Ferguson from 1969 to 1972. The Massey Ferguson 1080 is equipped with a 5.2 L (318.0 cu·in) four-cylinder diesel engine and a partial power shift transmission with dry disc clutch and 12 forward and 4 reverse gears.

The MF 1080 standard-tread tractor used the Perkins A4.318 engine. It is a 5.2 L, 5,211 cm2, (318.0 cu·in) four-cylinder natural aspirated diesel engine with 114.0 mm (4.49 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 17.5:1. This engine produced 52.8 PS (38.8 kW; 52.0 HP) at 2,000 rpm of output power and 355.3 N·m (36.2 kg·m, 261.9 ft·lb) at 1,250 rpm of torque.

The Massey Ferguson 1080 is equipped with hydrostatic power steering, dry disc brakes, open operator station or factory cab (optional), and 159.0 liters (42 US gal.; 35 Imp. gal) fuel tank for 2WD version or 210.0 liters (55.5 US gal, 46.2 Imp. gal) for 4WD version.

Massey Ferguson 1080 Specifications

General Specifications
Model Massey Ferguson 1080
Length 3,910 mm (153.9 in)
Width 2,190 mm (86.2 in)
Height 2,440 mm (96.1 in)
Wheel base 2,480 mm (97.6 in)
Ground clearance 590 mm (23.2 in)
Weight 3,865 kg (8,521 lbs)
Fuel tank capacity 2WD: 159.0 liters (42.0 US gal.; 35.0 Imp. gal)
4WD: 210.0 liters (55.5 US gal.; 46.2 Imp. gal)
Battery
Cabin type Open operator station or factory cab (optional)
Engine
Engine model Perkins A4.318
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 5.2 L, 5,211 cm2, (318.0 cu·in)
Bore and stroke 114.0 mm X 127.0 mm (4.49 in X 5 in)
Compression ratio 17.5:1
Horsepower 52.8 PS (38.8 kW; 52.0 HP) at 2,000 rpm
Torque 355.3 N·m (36.2 kg·m, 261.9 ft·lb) at 1,250 rpm
Starter Electric
Oil capacity: 9.5 L (10 US. qt, 8.4 Imp. qt.)
Coolant capacity: 15.6 L (16.5 US. qt, 13.7 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Dry disc
Differential lock Mechanical
Transmission model Multi-Power
Transmission type Partial power shift with dry disc clutch
Gears 12 forward and 4 reverse
Speed Forward: 31.2 kmh (19.4 mph) Reverse: 15.4 (9.6 mph)
Tires
Front tires Ag: 7.50-18
Rear tires Ag: 18.4-34
Three-Point Hitch
Caterogy II
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/1,000 rpm
Hydraulic system
Hydraulic type
Hydraulic capacity 42.0 L (44.38 US. qt, 36.95 Imp. qt.)
Pressure 2300 psi (158.6 bar)
Valves 1 or 2
Pump flow 8.0 gpm (30.3 lpm)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
