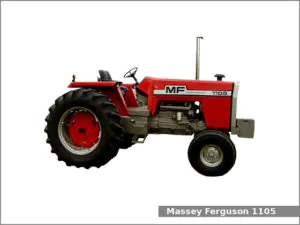

The Massey Ferguson 1105 is a 2WD row-crop tractor manufactured by Massey Ferguson from 1973 to 1978. The Massey Ferguson 1105 is equipped with a 5.8 L (354.0 cu·in) six-cylinder diesel engine and one of two transmissions: a two-speed power shift transmission with 12 forward and 4 reverse gears and dry disc clutch or a gear type transmission with 8 forward and 2 reverse gears.
The MF 1105 row-crop tractor used the Perkins ATC6.3541 engine. It is a 5.8 L, 5,801 cm2, (354.0 cu·in) six-cylinder turbocharged diesel engine with 98.0 mm (3.86 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 16.0:1. This engine produced 112.6 PS (82.8 kW; 111.0 HP) at 2,200 rpm of PTO output power.
The Massey Ferguson 1105 is equipped with power steering, hydraulic disc brakes, open operator station or cab (optional) and 208.2 liters (55 US gal.; 45.8 Imp. gal) fuel tank.
Following attachments are available for the MF 1105 row-crop tractor:
- Massey Ferguson 245 loader
- Massey Ferguson 245 High Lift loader
Massey Ferguson 1105 Specifications
| General Specifications | |
| Model | Massey Ferguson 1105 |
| Length | 4,570 mm (179.9 in) |
| Width | – |
| Height | – |
| Wheel base | 2,760 mm (108.7 in) |
| Weight (operating) | 5,590 kg (12,324 lbs) |
| Fuel tank capacity | 208.2 liters (55 US gal.; 45.8 Imp. gal) |
| Battery | 12V |
| Cabin type | Open operator station or Cab (optional) |
| Engine | |
| Engine model | Perkins ATC6.3541 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 6 |
| Fuel type | Diesel |
| Displacement | 5.8 L, 5,801 cm2, (354.0 cu·in) |
| Bore and stroke | 98.0 mm X 127.0 mm (3.86 in X 5 in) |
| Compression ratio | 16.0:1 |
| Horsepower | 112.6 PS (82.8 kW; 111.0 HP) at 2,200 rpm |
| Starter | Electric |
| Oil capacity: | 15.1 L (16 US. qt, 13.3 Imp. qt.) |
| Coolant capacity: | 20.8 L (22 US. qt, 18.3 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Power |
| Brakes | Hydraulic disc |
| Transmission model | Multi-Power |
| Transmission type | Two-speed power shift with dry disc clutch |
| Gears | 12 forward and 4 reverse |
| Speed | Forward: 26.9 kmh (16.7 mph) Reverse: 10.3 (6.4 mph) |
| Transmission model | – |
| Transmission type | Gear type |
| Gears | 8 forward and 2 reverse |
| Speed | Forward: 26.8 kmh (16.7 mph) Reverse: 13.9 (8.6 mph) |
| Tires | |
| Front tires | Ag: 11.00-16 |
| Rear tires | Ag: 18.4-38 |
| Three-Point Hitch | |
| Caterogy | III/II |
| Control type | Position and draft control |
| Lift capacity (at ends) | – |
| PTO (Power take-off shaft) | |
| Rear PTO type | Independent |
| Rear PTO speed | 540/1,000 rpm |
| Hydraulic system | |
| Hydraulic type | Closed center |
| Hydraulic capacity | 83.3 L (22 US. gal, 18.3 Imp. gal.) |
| Pressure | 2100 psi (144.8 bar) |
| Pump flow | 20.0 gpm (75.7 lpm) |
