Massey Ferguson 1155

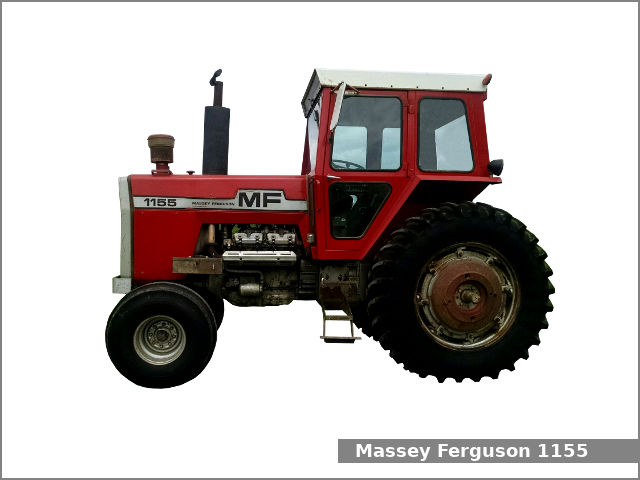

Massey Ferguson 1155The Massey Ferguson 1155 is a 2WD row-crop tractor manufactured by Massey Ferguson from 1973 to 1978. The MF 1155 tractor is equipped with an 8.9 L (540.0 cu·in) V8 diesel engine and one of two transmissions: a two-speed power shift transmission with 12 forward and 4 reverse gears and dry disc clutch or a gear type transmission with 8 forward and 2 reverse gears and dry disc clutch.

The Massey Ferguson 1155 row-crop tractor used the Perkins AV8.540 engine. It is an 8.9 L, 8,851 cm2, (540.0 cu·in) V8 natural aspirated diesel engine with 108.0 mm (4.25 in) of the cylinder bore and 121.0 mm (4.76 in) of the piston stroke. The compression ratio rating is 17.5:1. This engine produced 142 PS (104.4 kW; 140.0 HP) at 2,200 rpm of PTO output power.

The MF 1155 is equipped with power steering, hydraulic wet disc brakes, cab (standard) and 208.2 liters (55 US gal.; 45.8 Imp. gal) fuel tank.

Following attachments are available for the Massey Ferguson 1155 row-crop tractor:

  • Massey Ferguson 245 loader
  • Massey Ferguson 245 High Lift loader

Massey Ferguson 1155 Specifications

General Specifications
Model Massey Ferguson 1155
Length 4,570 mm (179.9 in)
Width
Height Cab: 2,880 mm (113.4 in)
Wheel base 2,760 mm (108.7 in)
Weight (operating) 6,760 kg (14,903 lbs)
Fuel tank capacity 208.2 liters (55 US gal.; 45.8 Imp. gal)
Battery 12V
Cabin type Cab (standard)
Engine
Engine model Perkins AV8.540
Engine type Four-stroke, air-cooled, V
Cylinders 8
Fuel type Diesel
Displacement 8.9 L, 8,851 cm2, (540.0 cu·in)
Bore and stroke 108.0 mm X 121.0 mm (4.25 in X 4.76 in)
Compression ratio 17.5:1
Horsepower 142 PS (104.4 kW; 140.0 HP) at 2,200 rpm
Starter Electric
Oil capacity: 18.9 L (20 US. qt, 16.6 Imp. qt.)
Coolant capacity: 47.3 L (50 US. qt, 41.6 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Power
Brakes Hydraulic wet disc
Transmission model Multi-Power
Transmission type Two-speed power shift with dry disc clutch
Gears 12 forward and 4 reverse
Speed Forward: 26.9 kmh (16.7 mph) Reverse: 10.3 (6.4 mph)
Transmission model
Transmission type Gear type with dry disc clutch
Gears 8 forward and 2 reverse
Speed Forward: 26.9 kmh (16.7 mph) Reverse: 13.4 (8.3 mph)
Tires
Front tires Ag: 14L-16
Rear tires Ag: 18.4-38
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/1000 rpm
Hydraulic system
Hydraulic type Closed center
Hydraulic capacity 83.3 L (22 US. gal, 18.3 Imp. gal.)
Pressure 2100 psi (144.8 bar)
Pump flow 20.0 gpm (75.7 lpm)
